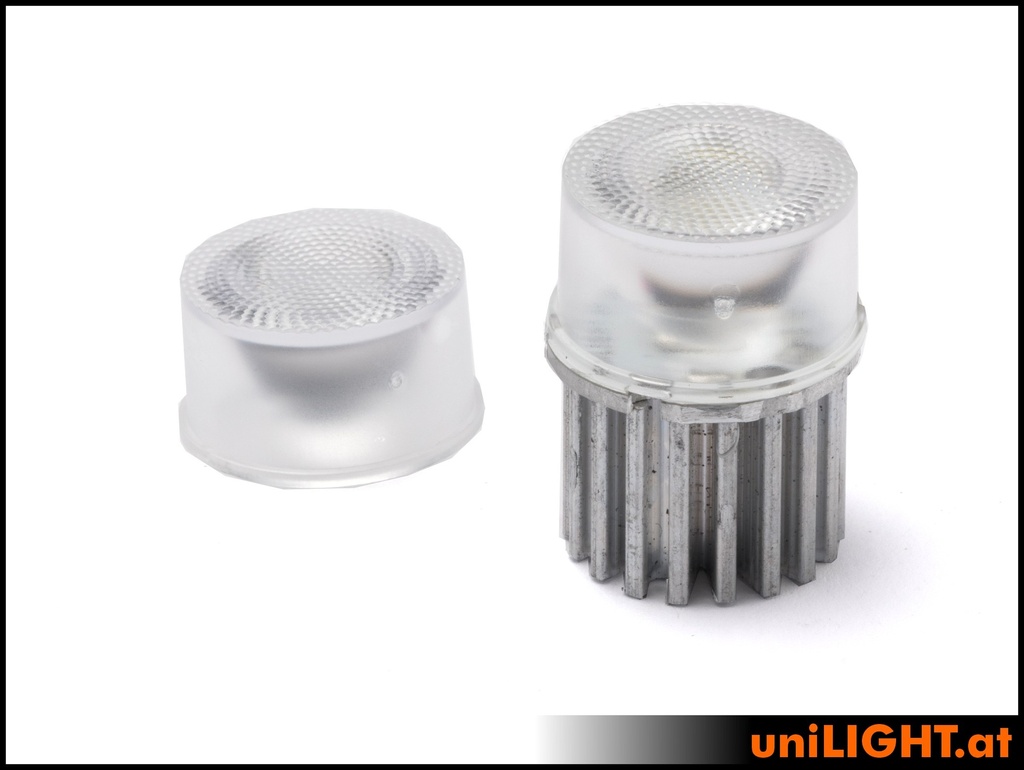

21mm ECO Spotlight, 5Wx2
SPOT21E-050x2
Standard type of the ECO spotlight line with over 350 lumens of light output
The Spotlight is equipped with an LED element, driver and cooling that operates directly on an 8V/2S LiPo/Li-ion. There are two lenses included, which depending on the preference and intended use, have to be attached with an epoxy or all-purpose adhesive.
Lens 1: ~ 30 ° beam angle
Lens 2: ~60 ° beam angle
Due to their configuration, the economy line spotlights can produce only limited light output relative to the comparable models of the PRO series made of full aluminum. But being able to concentrate light output in an narrower beam angle, they also achieve an impressive luminous efficiency.
Performance: 5Wx2 reference power
Voltage: 8V, use an additional resistor for 12V!
Electric current: 0.40A
Beam angle: ~60°/~30°
Light intensity: ~350 Lumen WHITE
Light intensity: ~350 Lumen WARMWHITE
Dimension: D21x28mm
Weight: 10g (without cable)
Equipped with a 1m connection cable.
| Operating Voltage: 2S/8V or 3S/12V with additional resistor |
| Cable Length: 1m Silicone 0.25mm² |
| Design: Round |
| Dimension: 21mm |
| Function: Spot |
For optimal performance, lenses have to be glued to a metallic surface with an epoxy or all-purpose adhesive.
Ensure sufficient cooling during operation. Our spotlights are optimized for use in model construction and should only be operated for about 3 minutes at a time with a fully charged battery without an additional cooling – intended for use as landing lights! For other applications, improving the cooling is, of course, always possible.
Warning: The LED lights are extremely bright! Never look directly into an LED!
