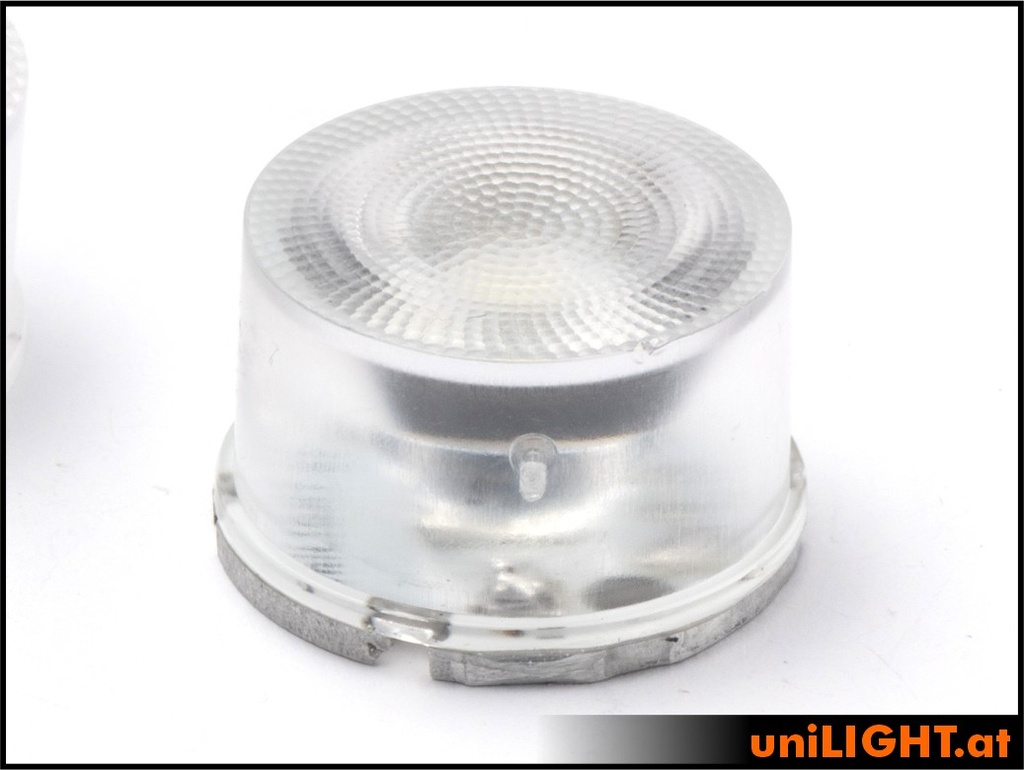

21mm ECO Spotlight, 2.2Wx2, SHORT
SPOT21XE-022x2
Beginner-level spotlight model of the ECO line, compact build with interchangeable optics
The Spotlight is equipped with an LED element that operates directly on an 8V/2S LiPo/Li-ion. There are two lenses included, which depending on the preference and intended use, have to be attached with an epoxy or all-purpose adhesive. The flat design without an integrated heat sink allows for use as a cost-effective landing spotlight, with a reference operating time of 3-4 minutes.
Lens 1: ~ 30 ° beam angle
Lens 2: ~60 ° beam angle
Due to their configuration, the economy line spotlights can produce only limited light output relative to the comparable models of the PRO series made of full aluminum. But being able to concentrate light output in an narrower beam angle, they also achieve an impressive luminous efficiency.
Performance: 2.2Wx2 reference power
Voltage: 8V, use an additional resistor for 12V!
Electric current: 0.20A
Beam angle: ~60°/~30°
Light intensity: ~160 Lumen WHITE
Light intensity: ~160 Lumen WARMWHITE
Dimension: D21x14mm
Weight: 5g (without cable)
Compact build without an additional heat sink makes it a great budget-friendly landing spotlight.
Equipped with a 1m connection cable.
| Cable Length: 1m Silicone 0.25mm² |
| Operating Voltage: 2S/8V or 3S/12V with additional resistor |
| Design: Round |
| Dimension: 21mm |
| Function: Spot |
For optimal performance, lenses have to be glued to a metallic surface with an epoxy or all-purpose adhesive.
Ensure sufficient cooling during operation. Our spotlights are optimized for use in model construction and should only be operated for about 3-4 minutes at a time with a fully charged battery without an additional cooling – intended for use as landing lights! For other applications, improving the cooling is, of course, always possible.
Warning: The LED lights are extremely bright! Never look directly into an LED!
