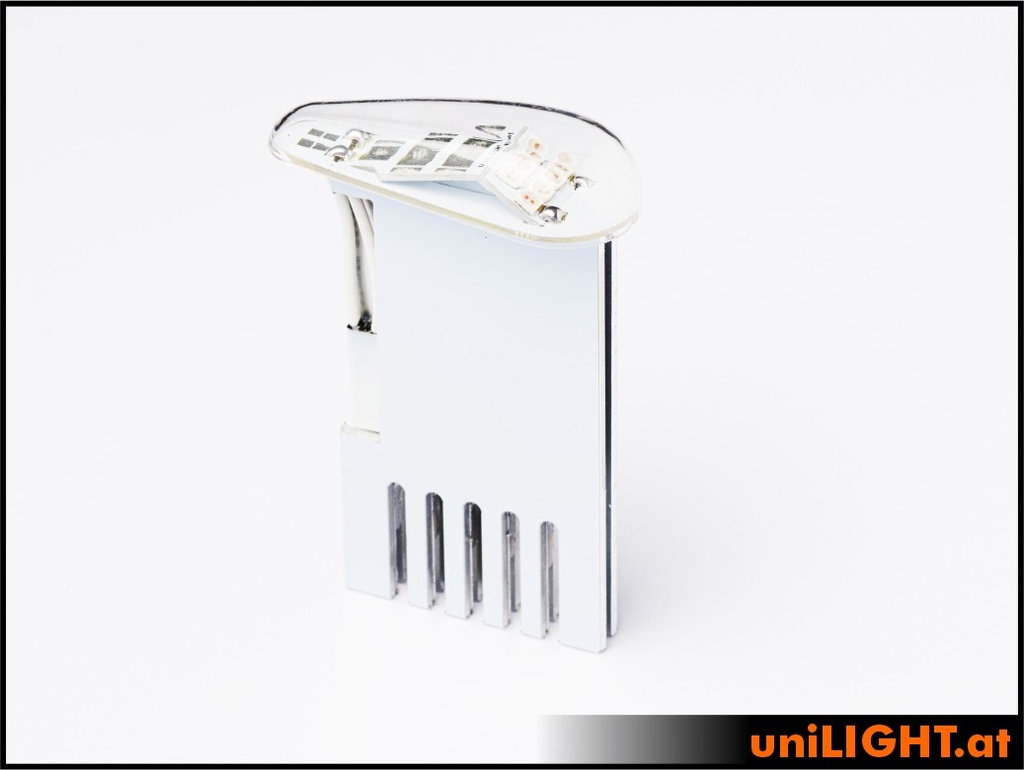

20mm PRO Power Navigation light, 11Wx2, T-Fuse
PRO20F-110x2
Hight-performance position light, the strongest in range!
Highly efficient navigation light! Forward angled build enables the best illumination and therefore the best visibility. This navigation light directs the luminous power to the front at a small angle and this way ensures the best visibility. The integrated thermal fuse ensures the secure operation.
The profile-shaped design can be perfectly integrated, the cap is included and can also be painted and varnished right on the model. The order includes a highly transparent and extremely break-proof cover cap made of injection-molded polycarbonate.
Electrical: 11W reference power with x2 technology,
Voltage: 8V / 12V, 3.3A
Overheating protection: the lights will safely turn off/be cycled at 65-70°C.
Beam angle: 0 to 180 °
Light intensity: ~ 630 lumens GREEN
Light intensity: ~ 270 lumens RED
Light intensity: ~ 990 lumens WHITE
Dimensions: 20x50x10mm, 65mm heatsink
Weight: 18g (without cable)
Equipped with 1m silicone connection cable, fully assembled with high-quality polycarbonate cap
| Operating Voltage: 2S/8V or 3S/12V with additional resistor |
| Cable Length: 1m Silicone 0.25mm² |
| Design: profile-shaped |
| Function: Navigation/Position Light |
| Dimensions: 20mm |
Please note that high-power LEDs can become very warm, up to 70°C is quite normal. These luminaires with heat sink mounting are suitable for continuous operation if air convection is possible. Check the operating temperatures after installation. We cannot accept any warranty due to overheating.
Warning: The LED lights are extremely bright! Never look directly into an LED!
