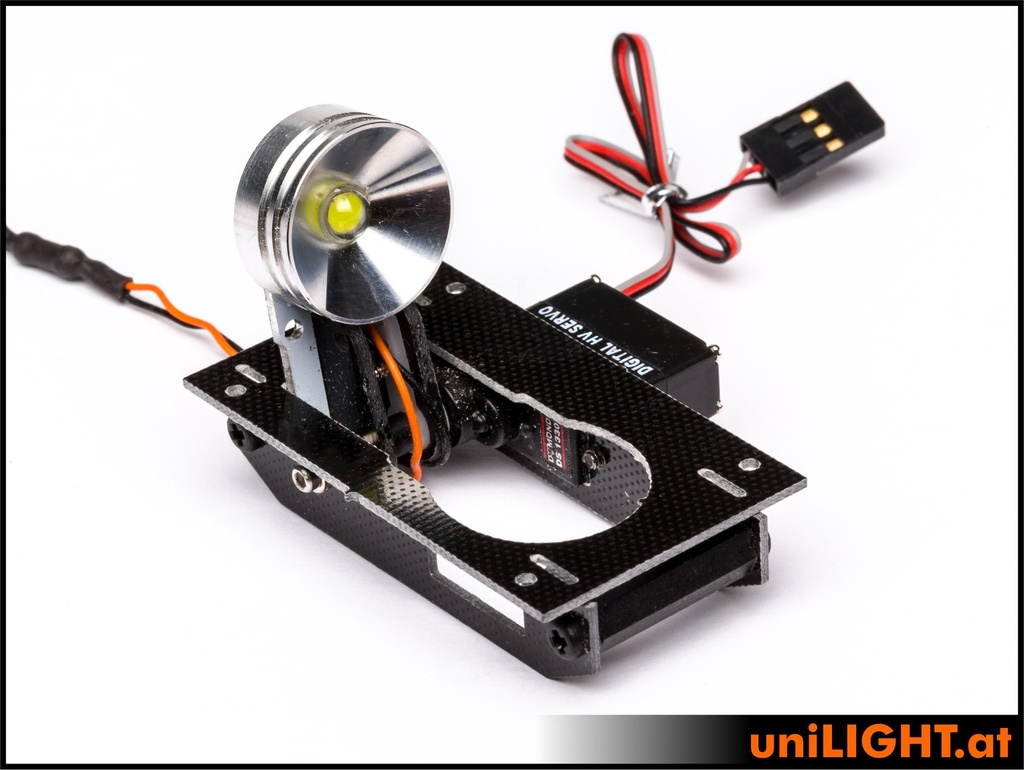

20mm Drop-out Spotlight REVERSE, 4Wx2, HV
FLIP20RHV-040x2
Space-efficient drop-out spotlight now easier than ever. Inspired by many full-scale aircraft, this feature can now be quickly and effortlessly integrated into model planes. An excellent addition for any aircraft, whether for scale realism, as a brake flap, or simply for practical use! Now with Kingmax KM04MD HV Servo, making it compatible with any system.
REVERSE spotlights drop out against the direction of flight, leaving visible only the back, not the reflector, when retracted (e.g., on the F-5).
Our pre-assembled units use compact 20mm High-Grade aluminum spotlights, providing impressive light output in a compact form. The module comes fully-assembled; simply attach the base plate with adhesive (e.g., UHU 300) as needed.
Power: 4Wx2 reference power
Voltage: 8V, use additional resistor for 12V!
Current: 0.35A
Beam angle: ~100°
Light intensity: 2x270 lumens WHITE
Light intensity: 2x250 lumens WARM WHITE
Weight: 20g (including servo)
Dimensions frame: 52x22mm, height 12,5mm
Equipped with 0.5m connection cable
| Operating Voltage: 2S/8V or 3S/12V with additional resistor |
| Cable Length: 0.5m PTFE 0,14mm² |
| Design: Round |
| Dimension: 20mm |
| Function: Flip Spotlights |
Simple design mounted directly on the Servo usually only requires fine-tuning of the position once installed.
Please pay attention to the operating temperature, we cannot accept any warranty due to overheating.
After installation, check the temperatures. The service life of the LED suffers if it is constantly operated at the upper power limit.
Attention: The LED lights are extremely bright! Never look directly into an LED!
