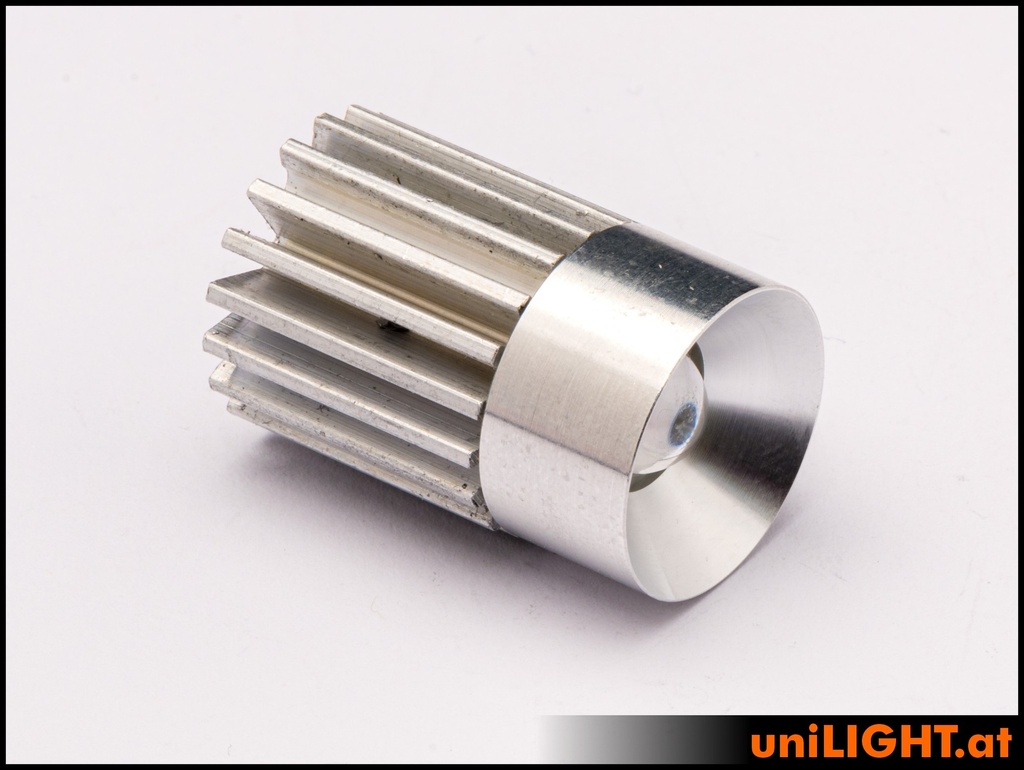

19mm Ultra Power Spotlight, 10Wx2, T-FUSE
SPOT19F-100x2
Ultra Power spotlight with integrated thermal fuse, best of it's class!
Ultrapower spotlight with integrated optics and over 700 lumens of light output in a compact size, thanks to high-performance COB chip technology. The CNC-manufactured aluminum reflector with a diameter of 19 mm and the integrated temperature fuse ensure an optimal balance between performance and weight. These headlights are already equipped with built-in optics. Therefore it has either a standard version with a beam angle of approx. 90° or an adjusted 45 ° beam angle light option available.
The spotlights are equipped with an integrated thermal fuse. If the unit becomes too warm during operating, the light will shut off automatically.
Performance: 10Wx2 reference power
Overheating protection: the lights will safely turn off/be cycled at 65-70°C.
Voltage: 8V, use an additional resistor for 12V!
Electric current: 0.8A
Beam angle: ~45°/~90°
Light intensity: ~700 Lumen WHITE
Light intensity: ~700 Lumen WARMWHITE
Dimension: D19x30mm
Weight: 12g (without cable)
Perfect for models that feature prominently visible spotlights.
Equipped with a 1m connection cable.
| Cable Length: 1m Silicone 0.25mm² |
| Operating Voltage: 2S/8V or 3S/12V with additional resistor |
| Design: Round |
| Dimension: 19mm |
| Function: Spot |
A 10mm mounting hole is required.
Ensure sufficient cooling during operation. Our spotlights are optimized for use in model construction and should only be operated for about 3 minutes at a time with a fully charged battery without an additional cooling – intended for use as landing lights! For other applications, improving the cooling is, of course, always possible.
Warning: The LED lights are extremely bright! Never look directly into an LED!
