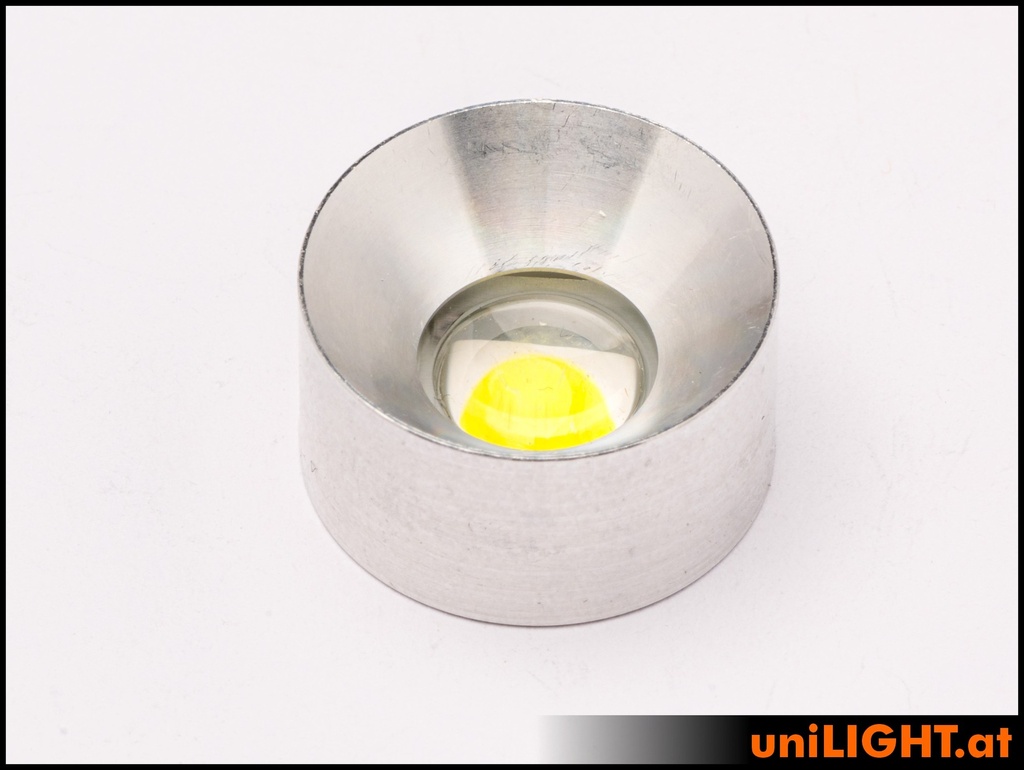

19mm Gear Spotlight, 6Wx2, SHORT
SPOT19X-060x2
Ultra Power gear-spotlight
Ultra power spotlight with integrated optics and over 450 lumens of light output in a very compact size, exceptional brightness, thanks to high-performance COB chip technology. The CNC-manufactured aluminum reflector with a diameter of 19 mm ensure an optimal balance between performance and weight that makes it perfectly suited to be used as a landing gear spotlight. It is strongly advised to ensure a thermally efficient bond to the chassis leg to ensure heat dissipation. These headlights are already equipped with built-in optics. That's why it has either a standard version with a beam angle of approx. 90° or an adjusted 45 ° beam angle light option available.
Performance: 6Wx2 reference power
Voltage: 8V, use an additional resistor for 12V!
Electric current: 0.5A
Beam angle: ~45°/~90°
Light intensity: ~450 Lumen WHITE
Light intensity: ~450 Lumen WARMWHITE
Dimension: D19x10mm, Mounting hole D10mm
Weight: 9g (without cable)
Perfectly suited to be used as a landing gear spotlight.
Equipped with a 1m connection cable.
| Cable Length: 1m Silicone 0.25mm² |
| Operating Voltage: 2S/8V or 3S/12V with additional resistor |
| Design: Round |
| Dimension: 19mm |
| Function: Landing Gear Spotlights |
For optimal performance, the spotlight have to be glued to a metallic surface (landing gear leg).
Ensure sufficient cooling during operation. Our spotlights are optimized for use in model construction and should only be operated for about 3 minutes at a time with a fully charged battery without an additional cooling – intended for use as landing lights! For other applications, improving the cooling is, of course, always possible.
Warning: The LED lights are extremely bright! Never look directly into an LED!
