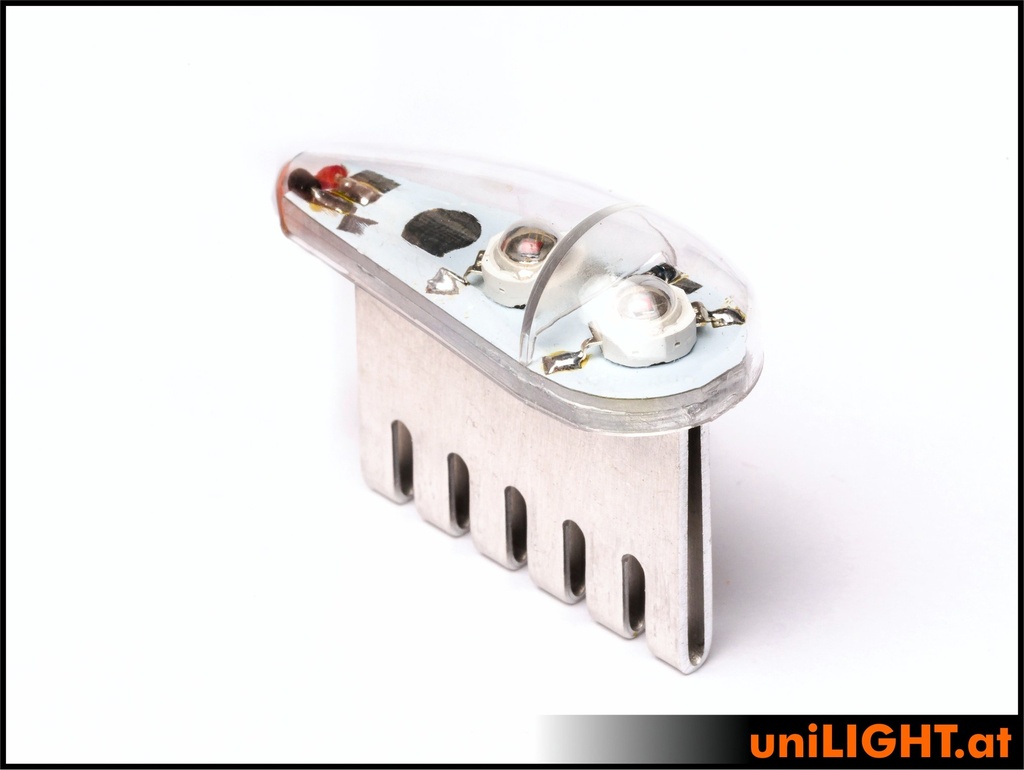

18mm PRO Navigation Light, 5Wx2

https://www.unilight.at/web/image/product.template/1438/image_1920?unique=38a6efe

PRO18-050x2

Strong navigation light in x2-technology - double light power with same heat dissipation. The profile light in 18mm series fits perfectly on bigger aircrafts with wingspan >2.5m. The profiled polycarbonate cap is delivered simply attached. It can be varnished separately, is highly transparent and unbreakable. The innovative, internally positioned cooling surface enables astonishingly compact dimensions with a unique slim design.

Technical Data:

Electricity: 5Wx2 reference power,
Voltage: 8(12)V, 0.45A
Beam angle: >160°
Light intensity: 2x70 Lumen ROT
Light intensity: 2x100 Lumen GRÜN
Light intensity: 2x130 Lumen WEISS
Dimensions heatsink: 3x36x15mm
Dimensions cap: 18x48x14mm
Dimensions: 18x48x27mm
Weight: 11g (without cable)

Delivery Content:

Equipped with 1m silicone cable and pre-configured resistor for 2S.

24.08 € 24.08 EUR 24.08 €

24.08 €

Not Available For Sale

  • Operating Voltage
  • Cable Length
  • Colour
  • Design
  • Function
  • Dimensions

This combination does not exist.

Contact Us
Operating Voltage: 2S/8V or 3S/12V with additional resistor
Cable Length: 1m Silicone 0.25mm²
Design: profile-shaped
Function: Navigation/Position Light
Dimensions: 18mm

Short URL

Warning Notice:

Please note that high-power LEDs can become very warm, up to 70°C is quite normal. These luminaires with heat sink mounting are suitable for continuous operation if air convection is possible. Check the operating temperatures after installation. We cannot accept any warranty due to overheating.
Warning: The LED lights are extremely bright! Never look directly into an LED!
