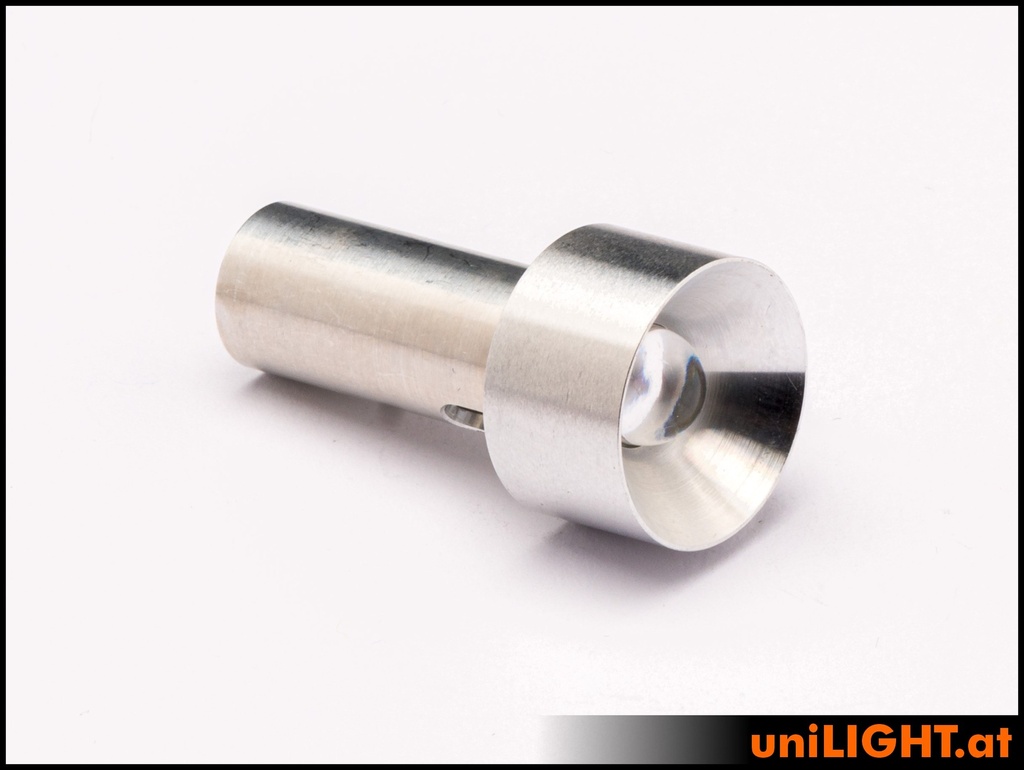

17mm Spotlight, 5Wx2

https://www.unilight.at/web/image/product.template/1190/image_1920?unique=c7f5b84

SPOT17-050x2

Ultra power spotligh

Ultra power spotlight with approx. 360 lumens output, CNC manufactured aluminum reflector with 17mm diameter. The perfect all-round spotlight, combining versatility with high performance.

The Spotlights are already equipped with integrated optics. By default these lights have a beam angle of approx. 90°. Alternatively there is also a well-bundled 30 ° beam angle light option.

Technical Data:

Performance: 5Wx2 reference power
Voltage: 8V, use an additional resistor for 12V!
Electric current: 0.4A
Beam angle: ~30° / ~90°
Light intensity: ~360 Lumen WHITE
Light intensity: ~360 Lumen WARMWHITE
Dimension: D17x33mm
Weight: 5g (without cable)

Purpose of Use:

Great all-purpose spotlight

Delivery Content:

Equipped with a 1m connection cable.

22.42 € 22.42 EUR 22.42 €

22.42 €

Not Available For Sale

  • Colour
  • Cable Length
  • Operating Voltage
  • Dimensions
  • Design
  • Dimension
  • Function

This combination does not exist.

Contact Us
Cable Length: 1m Silicone 0.25mm²
Operating Voltage: 2S/8V or 3S/12V with additional resistor
Design: Round
Dimension: 17mm
Function: Spot

Short URL

Assembly Instruction:

A 10mm mounting hole is required.

Warning Notice:

Ensure sufficient cooling during operation. Our spotlights are optimized for use in model construction and should only be operated for about 3 minutes at a time with a fully charged battery without an additional cooling – intended for use as landing lights! For other applications, improving the cooling is, of course, always possible.
Warning: The LED lights are extremely bright! Never look directly into an LED!
