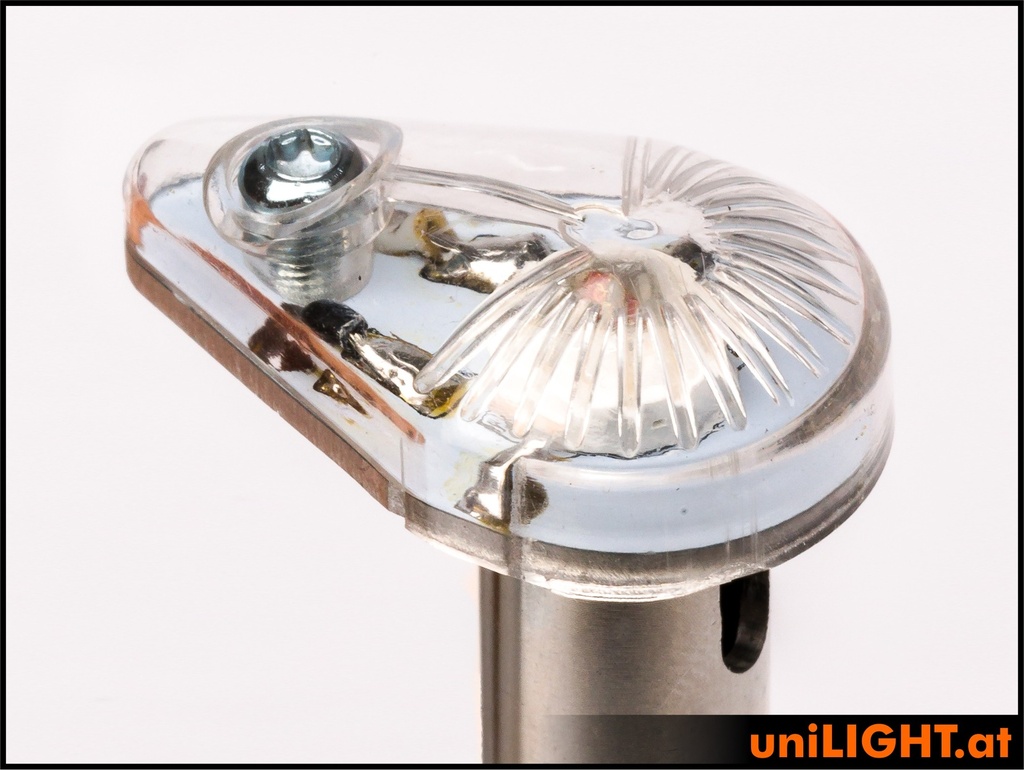

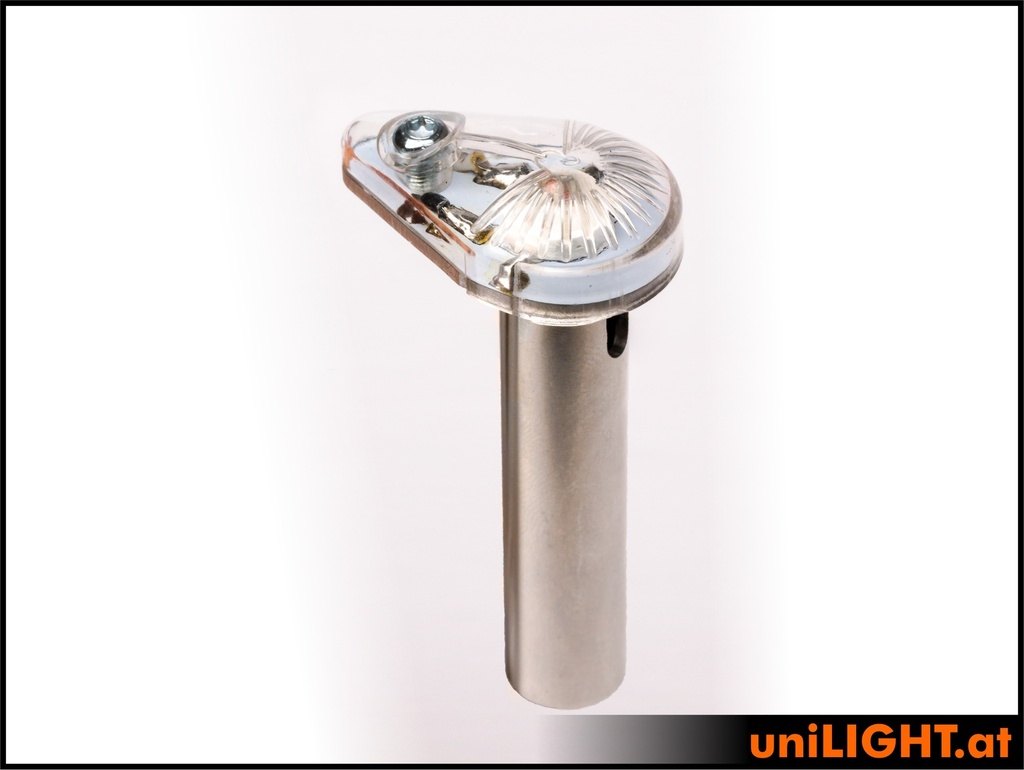

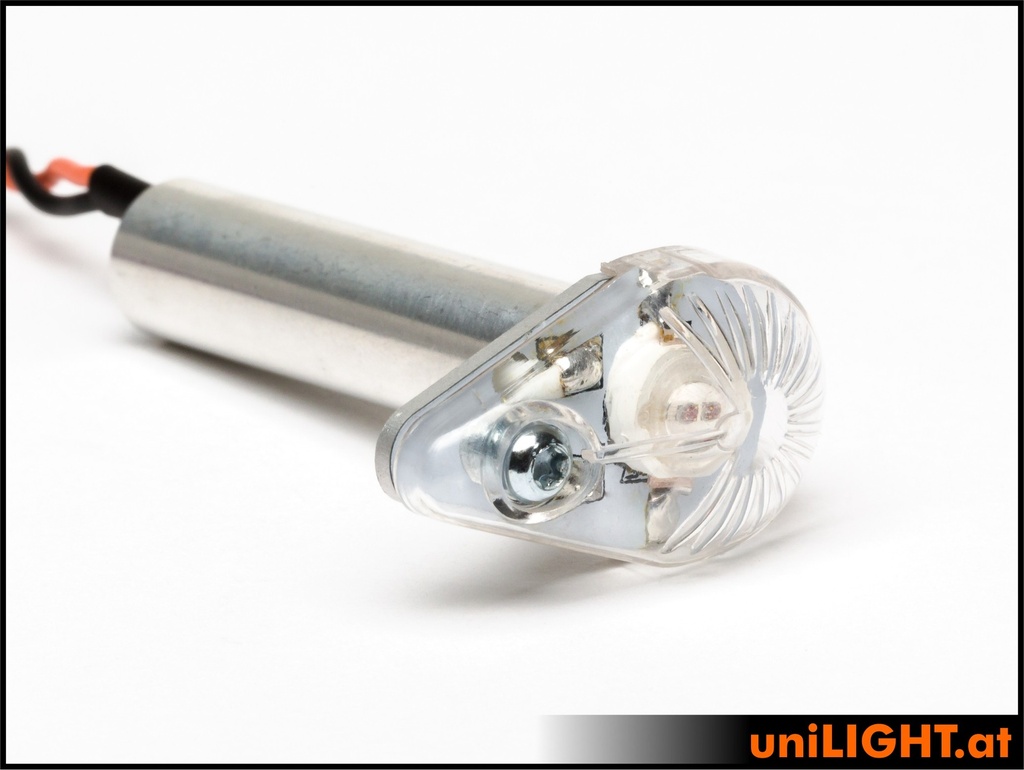

16mm PRO Navigation Light, 4Wx2, T-Fuse

https://www.unilight.at/web/image/product.template/1434/image_1920?unique=38a6efe

PRO16F-040x2

Power-efficient navigation light with an integrated thermal fuse

Navigation light with 16 mm width in x2 technology brings twice the brightness with the same energy consumption. Great beam angle due to special diffusion cap and integrated thermal fuse.

The unit is pre-configured for operation on a 2S LiPo (~8V). When operating on 3S (12V), the additional resistor must be used; alternatively, you can also use an 4W-3S adapter cable

Technical Data:

Electricity: 4Wx2 reference power,
Voltage: 8(12)V, 0.35A
Overheating protection: the lights will safely turn off/be cycled at 65-70°C.
Beam angle: >160°
Light intensity: ~90 Lumen RED
Light intensity: ~140 Lumen GREEN
Light intensity: ~190 Lumen WHITE
Dimension: 16.5x37x54mm
Weight: 6g (without cable)

Delivery Content:

Equipped with 1m silicone cable and pre-configured resistor for 2S, use an additional resistor for 3S.

26.58 € 26.58 EUR 26.58 €

26.58 €

Not Available For Sale

  • Operating Voltage
  • Cable Length
  • Colour
  • Design
  • Function
  • Dimensions

This combination does not exist.

Contact Us
Operating Voltage: 2S/8V or 3S/12V with additional resistor
Cable Length: 1m Silicone 0.25mm²
Design: profile-shaped
Function: Navigation/Position Light
Dimensions: 16mm

Short URL

Warning Notice:

Please note that high-power LEDs can become very warm, up to 70°C is quite normal. These luminaires with heat sink mounting are suitable for continuous operation if air convection is possible. Check the operating temperatures after installation. We cannot accept any warranty due to overheating.
Warning: The LED lights are extremely bright! Never look directly into an LED!
