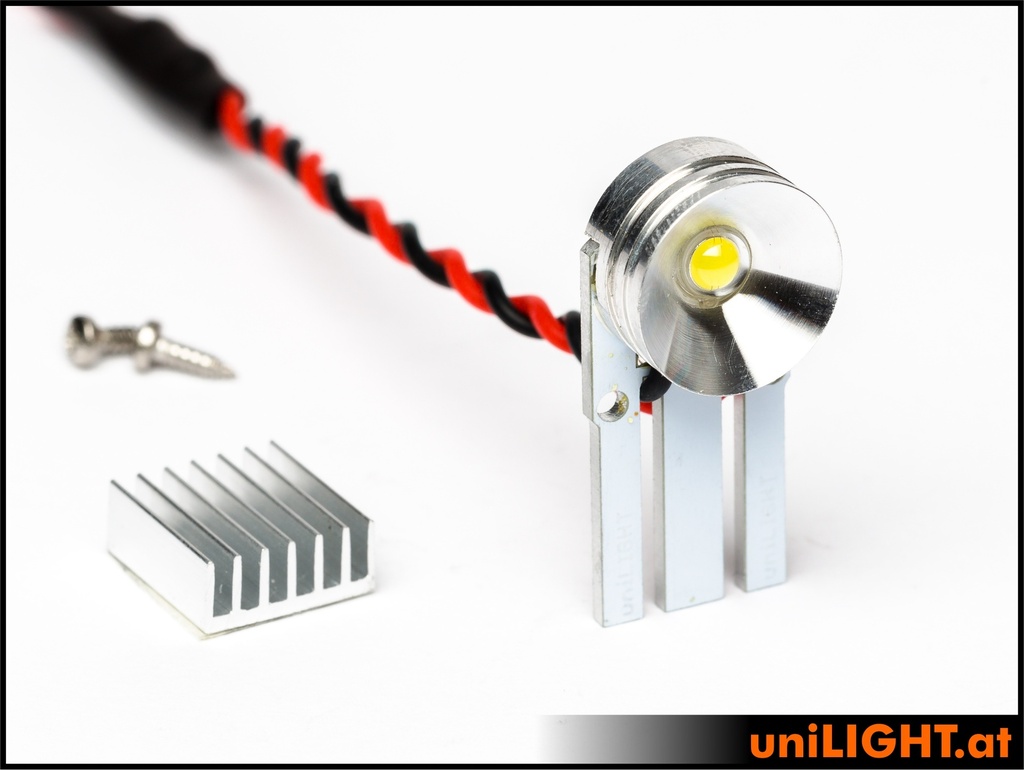

16mm Gear Spotlight, 8Wx2
SPOT16X-080x2
Compact ultra power spotlight with over 400 lumens of light output, CNC-manufactured aluminum reflector, 16 mm in diameter and a mounting plate for horizontal cooling. The included heat sink has to be installed for proper cooling. It is highly recommended to attach the spotlight directly to the undercarriage leg using thermally conductive adhesive, allowing the mounting flanges to be removed, so that only the reflector remains.
Please note: These ultra power lights have no thermal fuse, therefore a heat-conductive connection to the carrier (undercarriage leg) is strongly recommended.
Performance: 8Wx2 reference power
Voltage: 8V, use an additional resistor for 12V!
Electric current: 0.6A
Beam angle: ~100°
Light intensity: ~450 Lumen WHITE
Light intensity: ~400 Lumen WARMWHITE
Dimension: D16x36x9mm
Weight: 6g (without cable)
Ideal for use on undercarriages or as a drop-out spotlight.
Equipped with a 1m connection cable.
Operating Voltage: 2S/8V or 3S/12V with additional resistor |
Cable Length: 1m Silicone 0.25mm² |
Design: Round |
Dimension: 16mm |
Function: Landing Gear Spotlights |
The spotlight has to be attached directly to the undercarriage leg using thermally conductive adhesive.
Ensure sufficient cooling during operation. Our spotlights are optimized for use in model construction and should only be operated for about 3 minutes at a time with a fully charged battery without an additional cooling – intended for use as landing lights! For other applications, improving the cooling is, of course, always possible.
Warning: The LED lights are extremely bright! Never look directly into an LED!
