16mm DUAL Navigation + Strobe Light, 10Wx2
DUAL16-100x2
A powerful combination of a strobe and navigation lights in one unit
A white 6W x 2 strobe light and a 4W x 2 position light combined in a casing with integrated cooling surfaces. Both lights are individually controlled, making them ideal for combined operation as a position and strobe light.

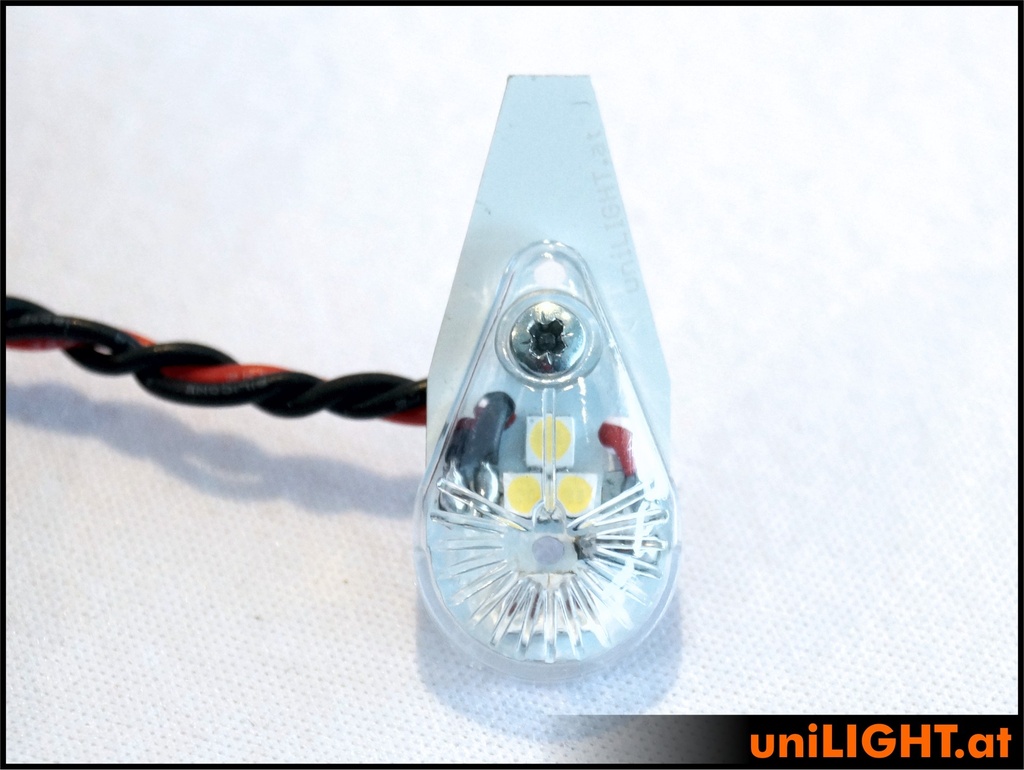

The light is delivered as a fully assembled unit on an aluminum cooling plate with a removable polycarbonate cover. It is pre-configured for operation with 2S LiPo (~8V). When operating with 3S (12V), the additional resistor must be used; alternatively, you can use a 4W-3S or 8W-3S adapter cable.
Electric: 4Wx2 RED / GREEN and 6Wx2 WHITE reference power,
Voltage: 8V / 12V; 0.3A RED / GREEN, 0.5A WHITE
Light intensity: ~ 100 lumens RED
Light intensity: ~ 140 lumens GREEN
Light intensity: ~ 350 lumens WHITE
Dimension: 16.x37x9mm
Weight: 6g (without cable)

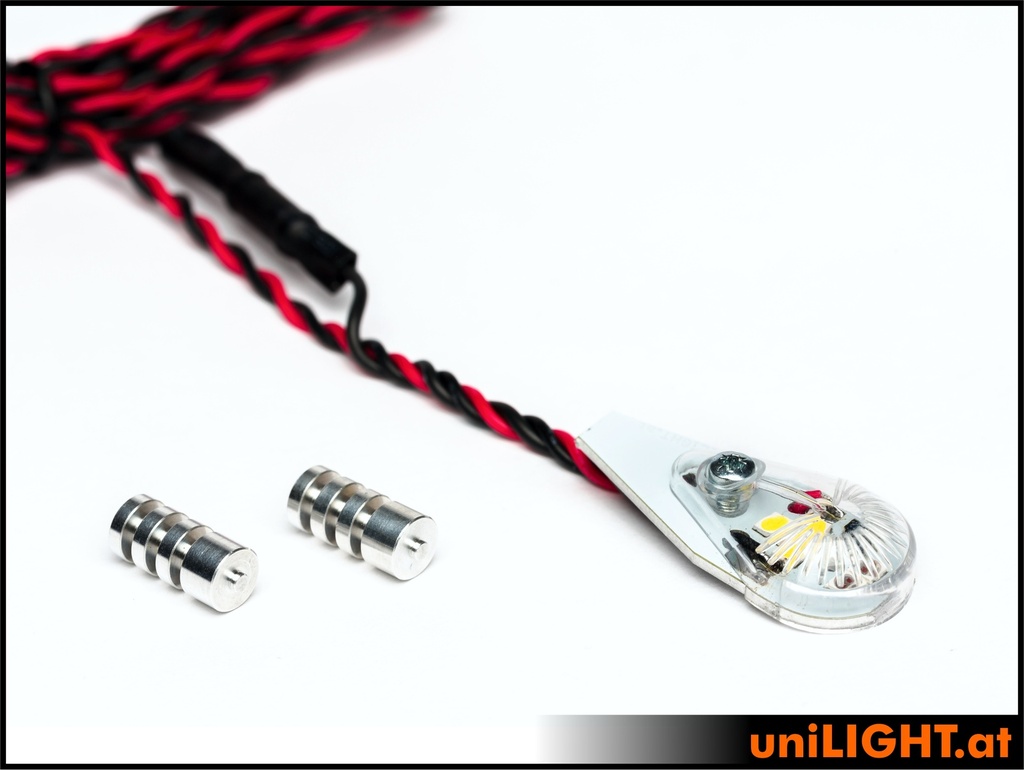

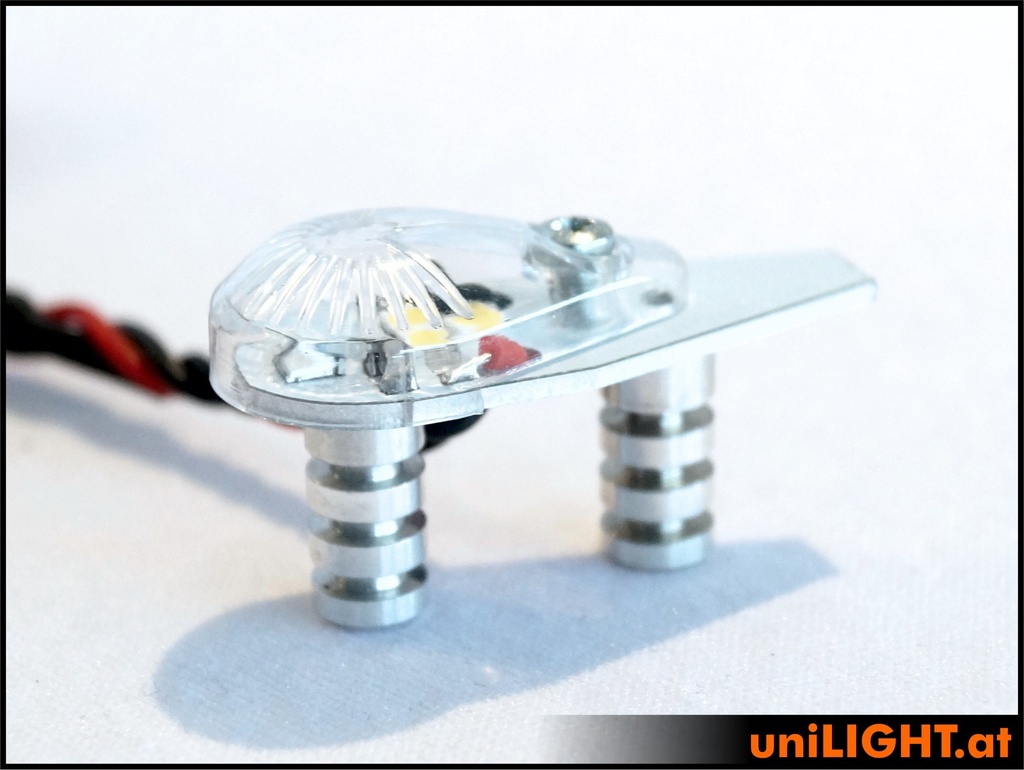

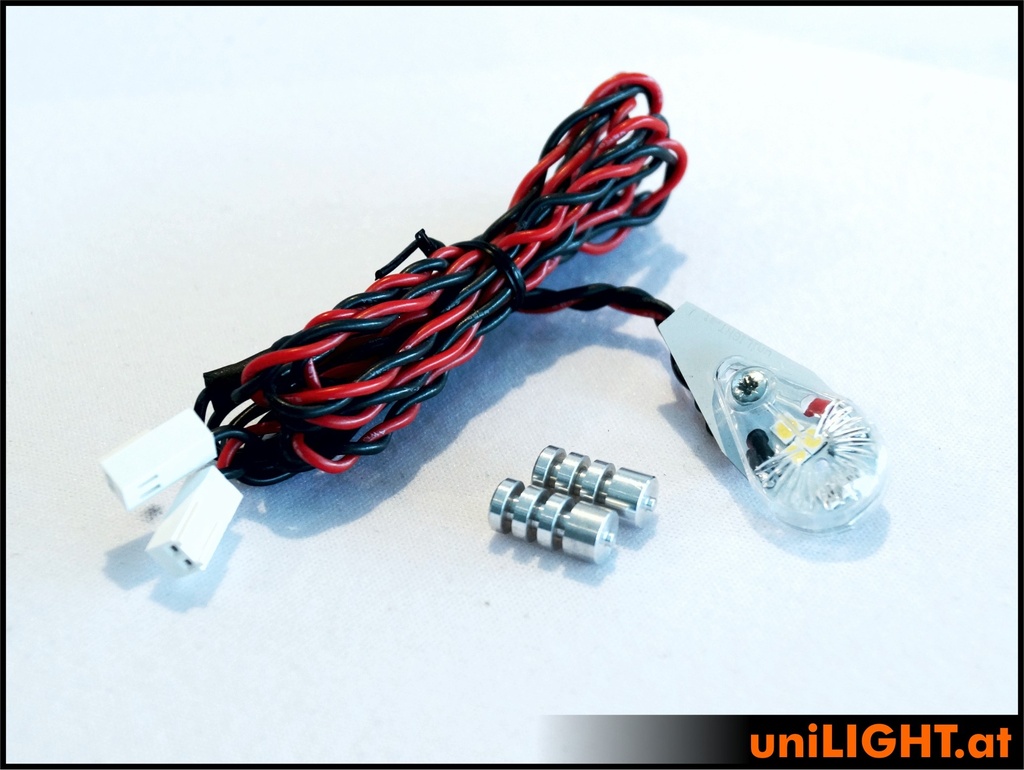

Equipped with 1m silicone connection cable, fully assembled with high-quality polycarbonate cap and 2 pcs. heat sinks
| Operating Voltage: 2S/8V or 3S/12V with additional resistor |
| Cable Length: 1m Silicone 0.25mm² |
| Design: profile-shaped |
| Function: Dual Navigation/Strobe |
| Dimensions: 16mm |
Please note that high-power LEDs can become very warm, up to 70°C is quite normal. These luminaires with heat sink mounting are suitable for continuous operation if air convection is possible. Check the operating temperatures after installation. We cannot accept any warranty due to overheating.
Warning: The LED lights are extremely bright! Never look directly into an LED!
