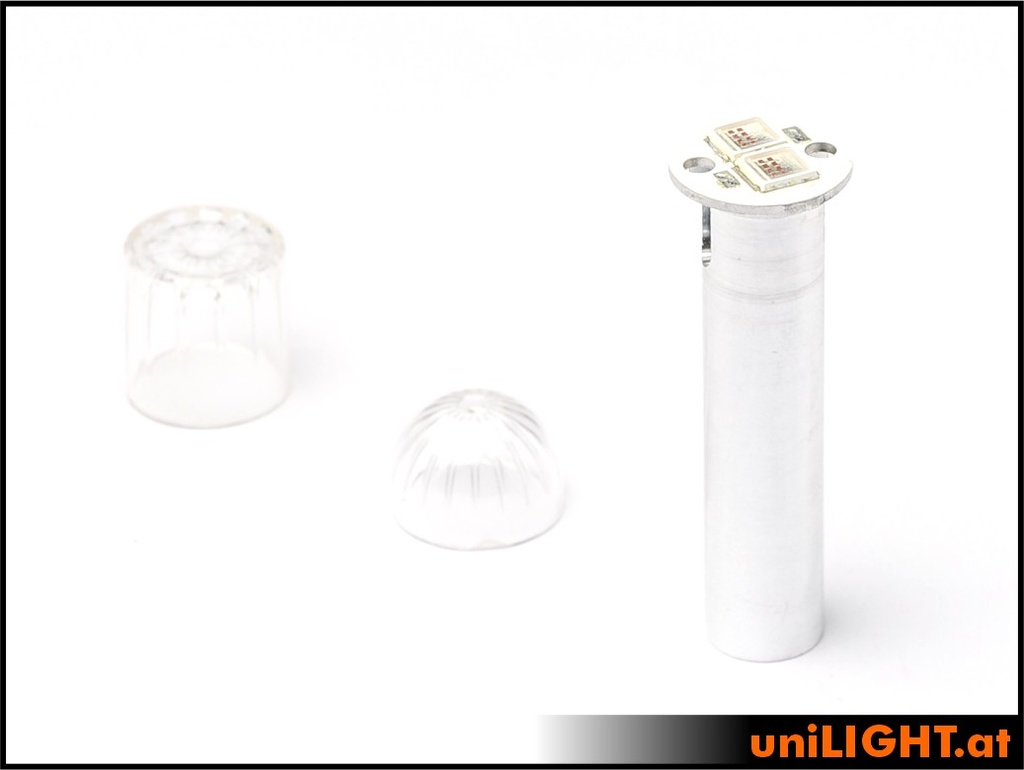

15mm PIN Strobe light, 16Wx2, T-Fuse

https://www.unilight.at/web/image/product.template/1323/image_1920?unique=2a6a93d

PIN15F-160x2

High-performance LED strobe light with 15mm diameter

High-performance LED strobe light with 16W reference power and x2 chip technology, designed for use as a highly powerful strobe light on various models.

Ideal for use as a strobe or beacon light on models starting from 2m wingspan, and helicopters from 700 range.

This light is equipped with an integrated thermal fuse that shuts off at 65°C and automatically reactivates after cooling. The thermal design is intended for strobe or beacon operation and would lead to early shutdown if used as a position light.

Technical Data:

Electricity: 16W reference power,
Voltage: 8(12)V, 1.3A
Overheating protection: the lights will safely turn off/be cycled at 65-70°C.
Beam angle: >160°
Light intensity: ~400 Lumen RED
Light intensity: ~600 Lumen GREEN
Light intensity: ~1100 Lumen WHITE
Dimension cooling tube: D10mm
Dimension light cap: round 15x10mm, cylindric 15x15mm
Total mass: D15mm, 41mm length
Weight: 7g (without cable)

Purpose of Use:

Ideal as a strobe or beacon light on all models starting from 2m. and helicopters from 700.

Delivery Content:

The penlight is delivered pre-assembled and ready for use on a CNC-manufactured aluminum heatsink;
2 high-strength polycarbonate caps are included for versatile use.
1x 15mm cylindric cap
1x 15mm round cap

29.08 € 29.08 EUR 29.08 €

29.08 €

Not Available For Sale

  • Operating Voltage
  • Cable Length
  • Colour
  • Design
  • Dimension
  • Function

This combination does not exist.

Contact Us
Operating Voltage: 2S/8V or 3S/12V with additional resistor
Cable Length: 1m Silicone 0.5mm²
Design: Round
Dimension: 15mm
Function: Navigation/Position Light

Short URL

Assembly Instruction:

The caps must be glued separately and can also to a certain degree be painted in the model color. Any adhesive that does not evaporate is suitable for bonding, such as epoxy, Uhu Allplast, Uhu Por, silicone, canopy glue,...

Warning Notice:

Please note that high-performance LEDs can become very warm, up to 70°C is completely normal. These heat sink mounted lights are suitable for continuous operation when air convection is possible. After installation, check the operating temperatures. We cannot guarantee against overheating.
Warning: The LED lights are extremely bright! Never look directly into an LED!
