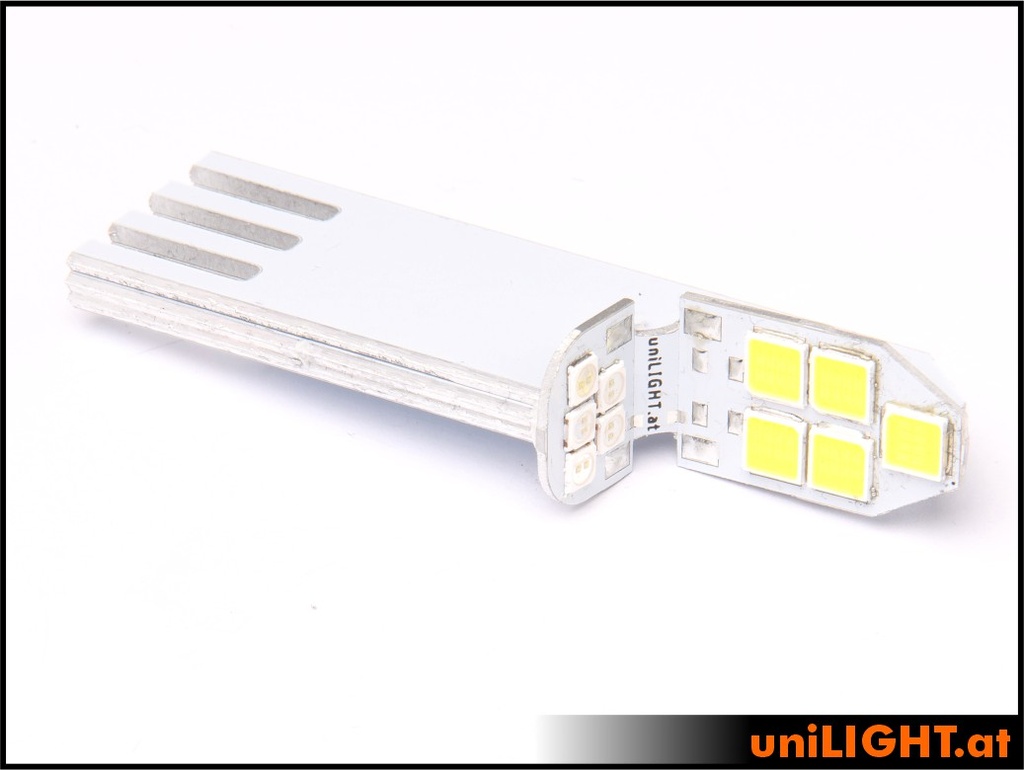

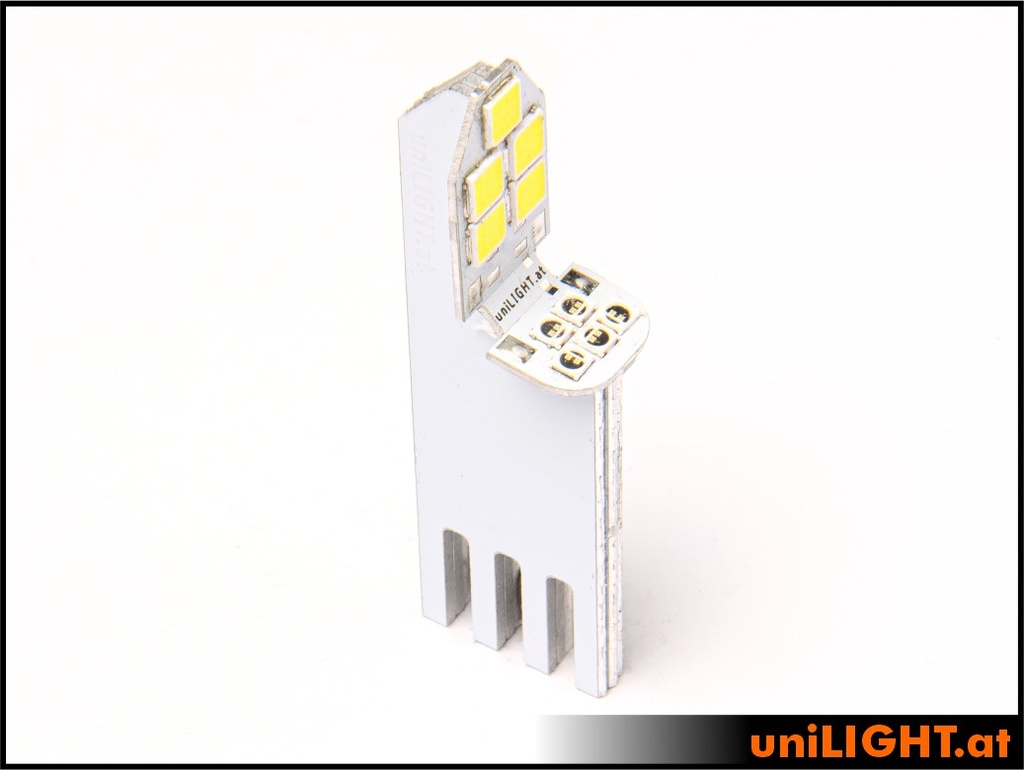

15mm DUALREC Navigation + Strobe light, 32Wx2, T-Fuse
DUALREC15F-320x2
Very powerful build-in Navigation/Strobe light with up to 2000 lumens light output!
The RECESSED (=INTEGRATED) series lights are designed for direct installation into wings when cutouts and coverings that match the wing shape are already in place. This means that no additional caps are included, as these follow the wing's form. This type of integration into the wing geometry is increasingly common, especially in modern aircraft.
With this series, we now offer position lights as well as combined position & strobe lights for custom installation. These DUAL lights feature a conventional bright position light and an extremely powerful strobe. The light angles extend beyond 120° through installation of the mounting plate. The 15mm version also includes a thermal fuse that prevents damage due to overheating.

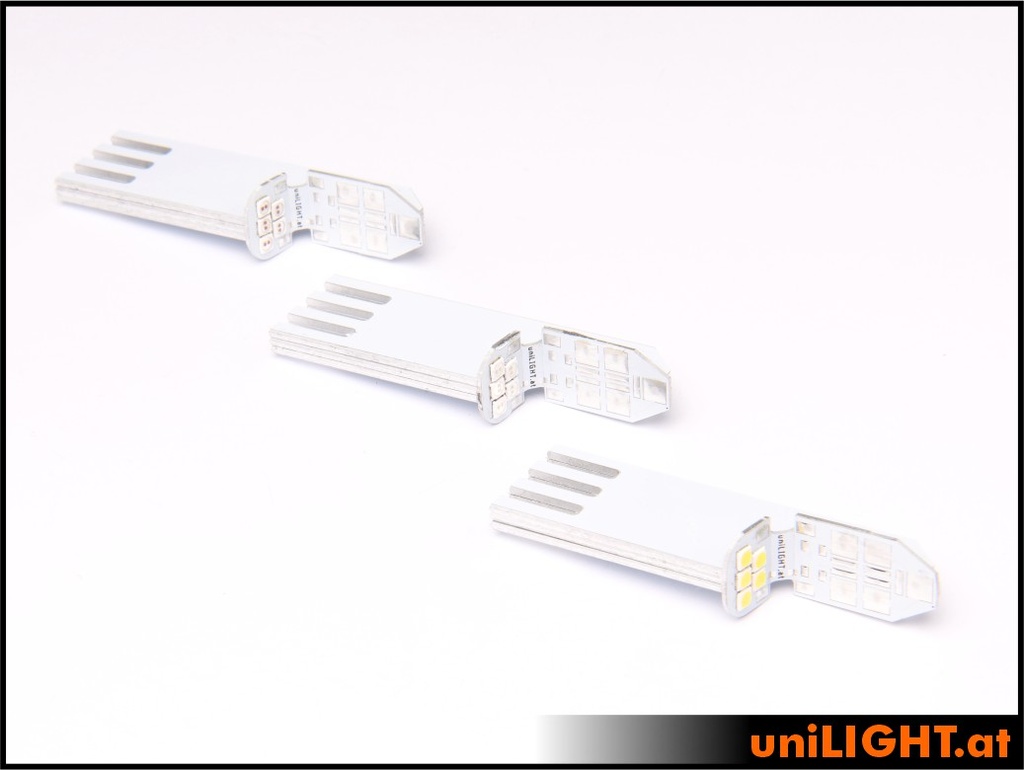

The series is available in 7mm, 10mm, and 15mm variants, each offering increased performance according to the size and weight.
Performance: 32W reference power with x2-technic,
Voltage: 8V/12V, 0.6/2.2A
Beam Angle: 120°
Light intensity: ~190 Lumen RED
Light intensity: ~300 Lumen GREEN
Light intensity: ~2000 Lumen WHITE
Dimension: 14x48x60mm
Weight: 26g (without cable)
Equipped with 1m silicone connection cable.
| Operating Voltage: 2S/8V or 3S/12V with additional resistor |
| Cable Length: 1m Silicone 0.5mm² |
| Design: profile-shaped |
| Dimensions: 15mm |
| Function: Dual Navigation/Strobe |
Please note that high-performance LEDs can become very warm, up to 70°C is completely normal. These heat sink mounted lights are suitable for continuous operation when air convection is possible. After installation, check the operating temperatures. We cannot guarantee against overheating.
Warning: The LED lights are extremely bright! Never look directly into an LED!
