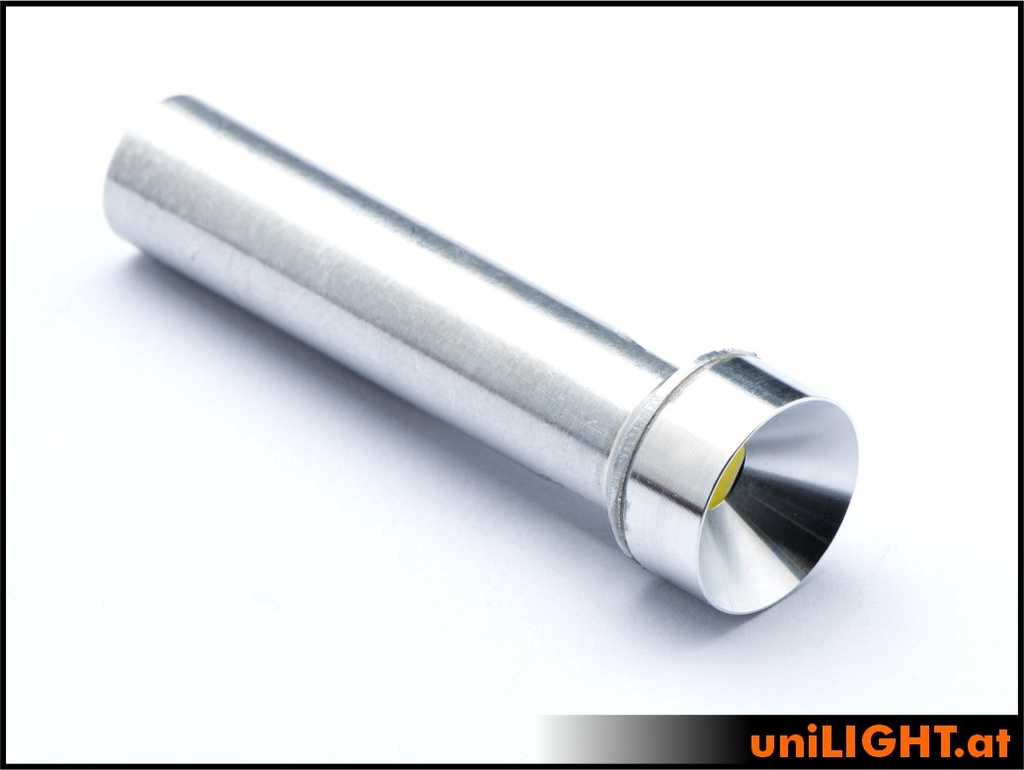

14mm Ultra Power Spotlight, 8Wx2, T-FUSE
SPOT14F-080x2
Ultra power 14mm spotlight with a thermal fuse
Ultrapower spotlight with integrated optics and over 550 lumens of light output in a compact size, thanks to high-performance COB chip technology. The CNC-machined aluminum reflector with a diameter of 14 mm and the integrated temperature fuse ensure an optimal balance between performance and weight. These headlights are already equipped with built-in optics, which further enhances their efficiency.
Performance: 8Wx2 reference power
Overheating protection: the lights will safely turn off/be cycled at 65-70°C
Voltage: 8V, use an additional resistor for 12V!
Electric current: 0.65A
Beam angle: ~90°
Light intensity: ~590 Lumen WHITE
Light intensity: ~590 Lumen WARMWHITE
Dimension: D14x52mm, mounting hole D10mm
Weight: 6g (without cable)
All-round spotlight.
Equipped with a 1m connection cable
| Cable Length: 1m Silicone 0.25mm² |
| Operating Voltage: 2S/8V or 3S/12V with additional resistor |
| Design: Round |
| Dimension: 14mm |
| Function: Spot |
A 10mm mounting hole is required.
Ensure sufficient cooling during operation. Our spotlights are optimized for use in model construction and should only be operated for about 3-4 minutes at a time with a fully charged battery without an additional cooling – intended for use as landing lights! For other applications, improving the cooling is, of course, always possible.
Warning: The LED lights are extremely bright! Never look directly into an LED!
