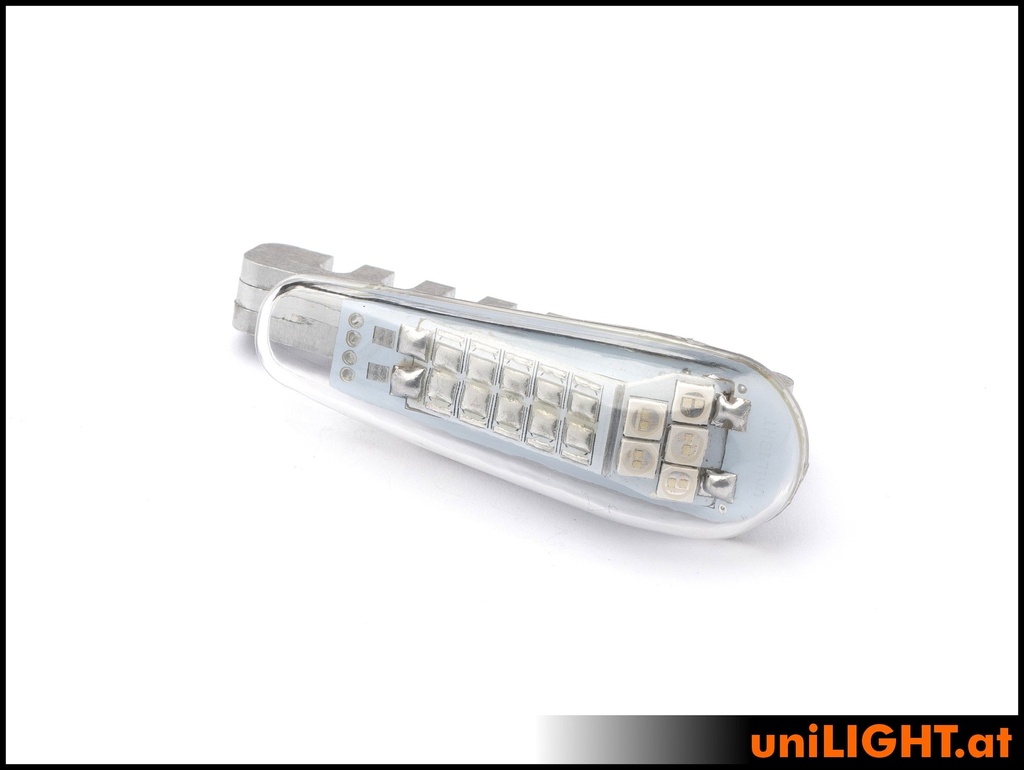

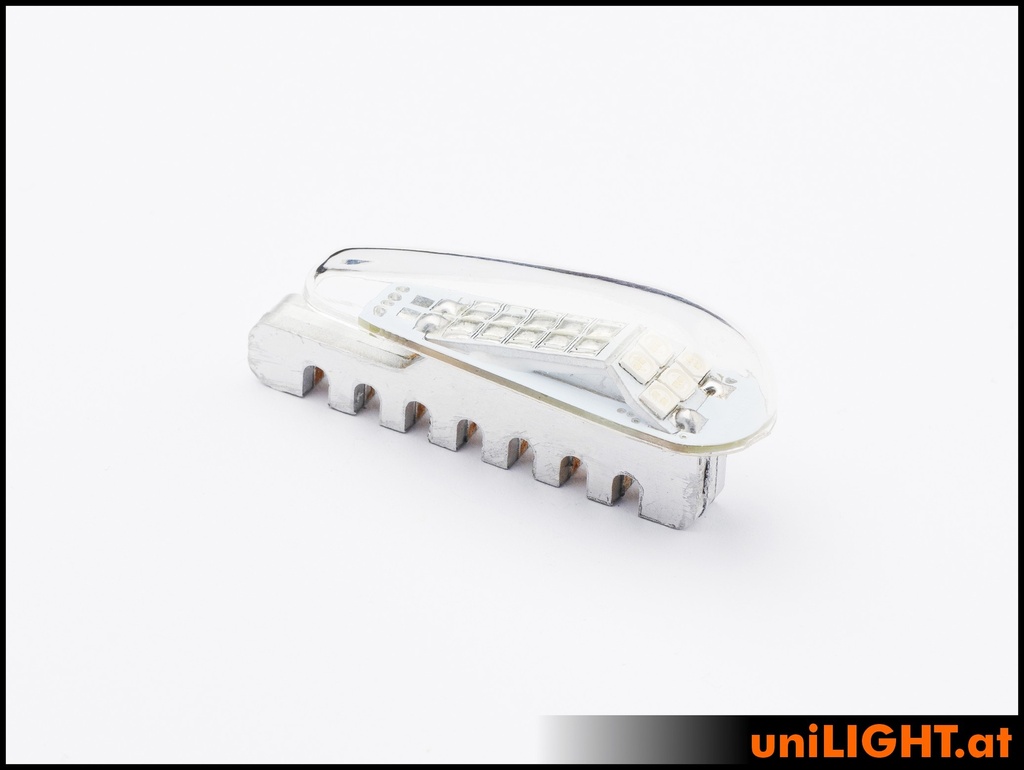

14mm PRO Navigation Light,4Wx2, SHORT
PRO14X-040x2
The flat version of 14mm navigation lights with angled design ensures superior illumination in all sectors. Excellent visibility and great brightness. Flat design makes it easy to integrate even in small Jet scale models. Ideal for example for installation on air inlet vents.
Order includes a highly transparent and extremely break-proof cover cap made of injection-molded polycarbonate. The cap must be glued to the light module on the model.
Electrical: 4W reference power with x2 technology,
Voltage: 8V / 12V, 0.3A
Beam angle: 120°
Light intensity: ~ 100 lumens RED
Light intensity: ~ 210 lumens GREEN
Light intensity: ~ 360 lumens WHITE
Dimensions: 53x22x14mm
Weight: 10g (without cable)
Equipped with 1m silicone connection cable, fully assembled with high-quality polycarbonate cap
| Operating Voltage: 2S/8V or 3S/12V with additional resistor |
| Cable Length: 1m Silicone 0.25mm² |
| Design: profile-shaped |
| Function: Navigation/Position Light |
| Dimensions: 14mm |
The cap must be glued to the light module on the model.
Please note that high-performance LEDs can become very warm, up to 70°C is completely normal. After installation, check the operating temperatures. We cannot guarantee against overheating.
Warning: The LED lights are extremely bright! Never look directly into an LED!
