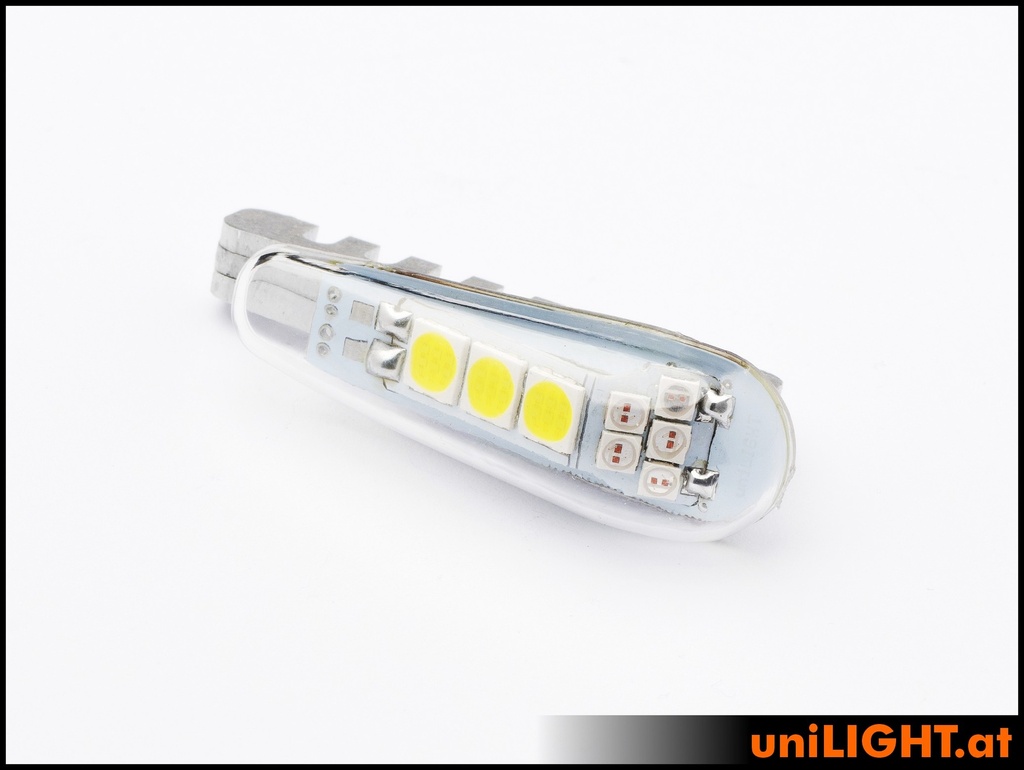

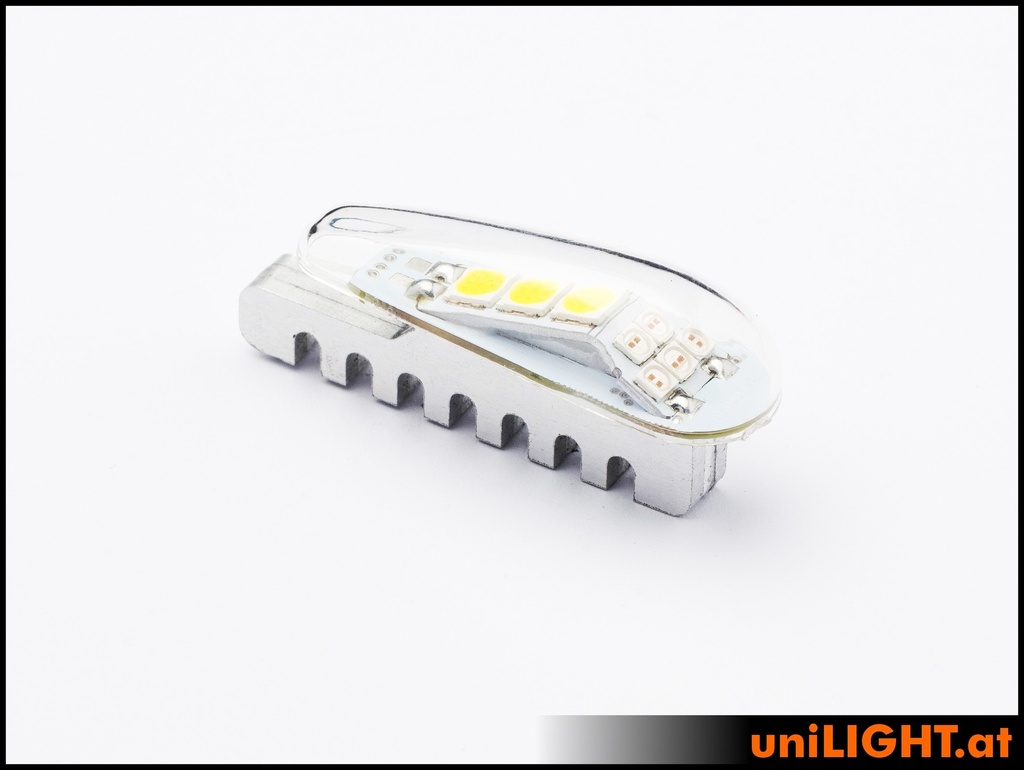

14mm DUAL Navigation + Strobe Light, 14Wx2, SHORT
DUAL14X-140x2
Strongest generation of compact and extremely powerful position lights with integrated strobe function
The angled design ensures optimal forward emission for the position light and side emission for the strobe. Provides excellent visibility with minimal glare, just like the prototypes. The extremely compact design integrates seamlessly and delivers unmatched light performance! The order includes a highly transparent and extremely break-proof cap made of injection-molded polycarbonate. The cap must be glued to the model together with the light module.
Electric: 5Wx2 RED / GREEN and 10Wx2 WHITE reference power,
Voltage: 8V / 12V; 0.4A RED / GREEN, 0.8A WHITE
Beam angle: 0 to 120 ° RED / GREEN, 60 ° to 180 ° WHITE
Light intensity: ~ 100 lumens RED
Light intensity: ~ 210 lumens GREEN
Light intensity: ~ 765 lumens WHITE
Dimension: 48x10, 14mm
Weight: 10g (without cable)
Equipped with 1m silicone connection cable, fully assembled with high-quality polycarbonate cap
| Operating Voltage: 2S/8V or 3S/12V with additional resistor |
| Cable Length: 1m Silicone 0.25mm² |
| Design: profile-shaped |
| Function: Dual Navigation/Strobe |
| Dimensions: 14mm |
The cap must be glued to the light module on the model.
Please note that high-power LEDs can become very warm, up to 70°C is quite normal. These luminaires with heat sink mounting are suitable for continuous operation if air convection is possible. Check the operating temperatures after installation. We cannot accept any warranty due to overheating.
Warning: The LED lights are extremely bright! Never look directly into an LED!
