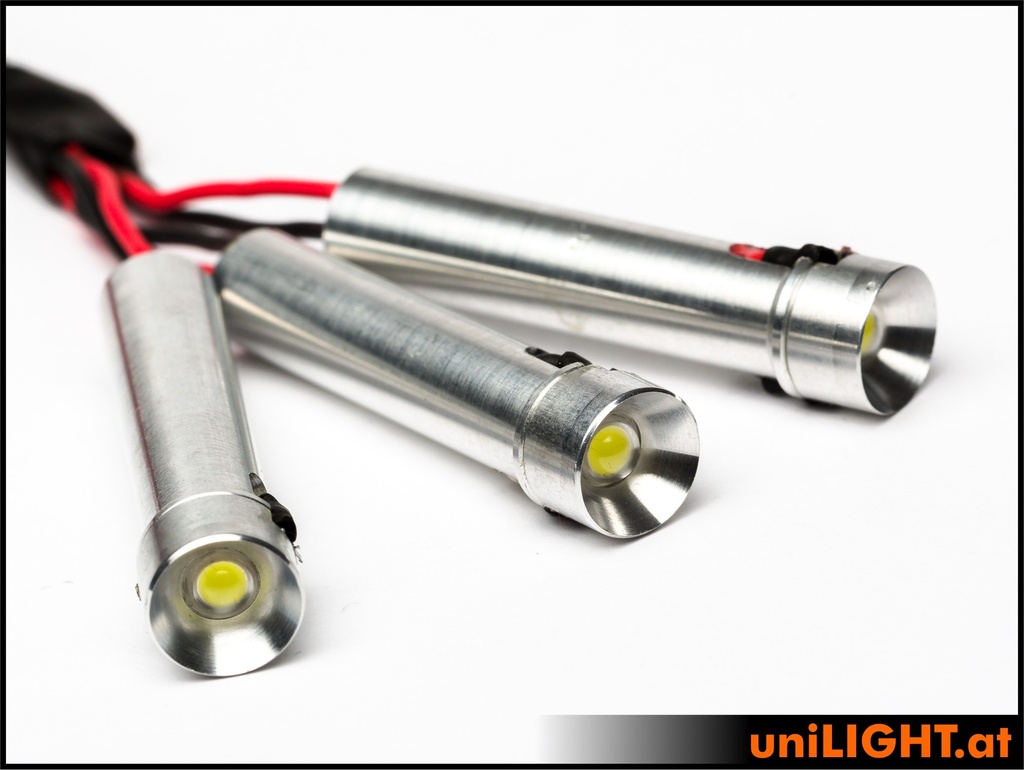

12mm Triple Spotlight, 3x8W, T-FUSE

https://www.unilight.at/web/image/product.template/1220/image_1920?unique=c7f5b84

SPOT12F-080

Compact spotlights with 12mm diameter

These three small spotlights, featuring very compact CNC-manufactured aluminum reflectors with a diameter of only 12mm, deliver outstanding performance in a minimal space. These spotlights are perfectly suited for use as high-performance spotlights on smaller Viper jets and similar models, ensuring visibility over hundreds of meters even in daylight. The wide beam angle combined with the enormous performance makes these spotlights a top choice!
These advanced spotlights are equipped with an integrated thermal fuse. If the unit becomes too warm during operating, the light will shut off automatically.

​

Technical Data:

Performance: 3x8W reference power
Overheating protection: the lights will safely turn off/be cycled at 65-70°C.
Voltage: 12V!
Electric current: 0.7A
Beam angle: ~110°
Light intensity: ~3x200 Lumen WHITE
Light intensity: ~3x160 Lumen WARMWHITE
Dimension: D12x52mm, Mounting hole D10mm
Weight: 22g (without cable)

Purpose of Use:

These spotlights are perfectly suited for use as high-performance spotlights on smaller Viper jets and similar models.

Delivery Content:

Equipped with a 1m connection cable.

57.42 € 57.42 EUR 57.42 €

57.42 €

Not Available For Sale

  • Colour
  • Cable Length
  • Design
  • Dimensions
  • Operating Voltage
  • Function

This combination does not exist.

Cable Length: 1m Silicone 0.25mm²
Design: Round
Dimensions: 12mm
Operating Voltage: 3S/12V
Function: Spot

Short URL

Assembly Instruction:

A 10mm mounting hole is required.

Warning Notice:

Ensure sufficient cooling during operation. Our spotlights are optimized for use in model construction and should only be operated for about 3-5 minutes at a time with a fully charged battery without an additional cooling – intended for use as landing lights! For other applications, improving the cooling is, of course, always possible.
Warning: The LED lights are extremely bright! Never look directly into an LED!
