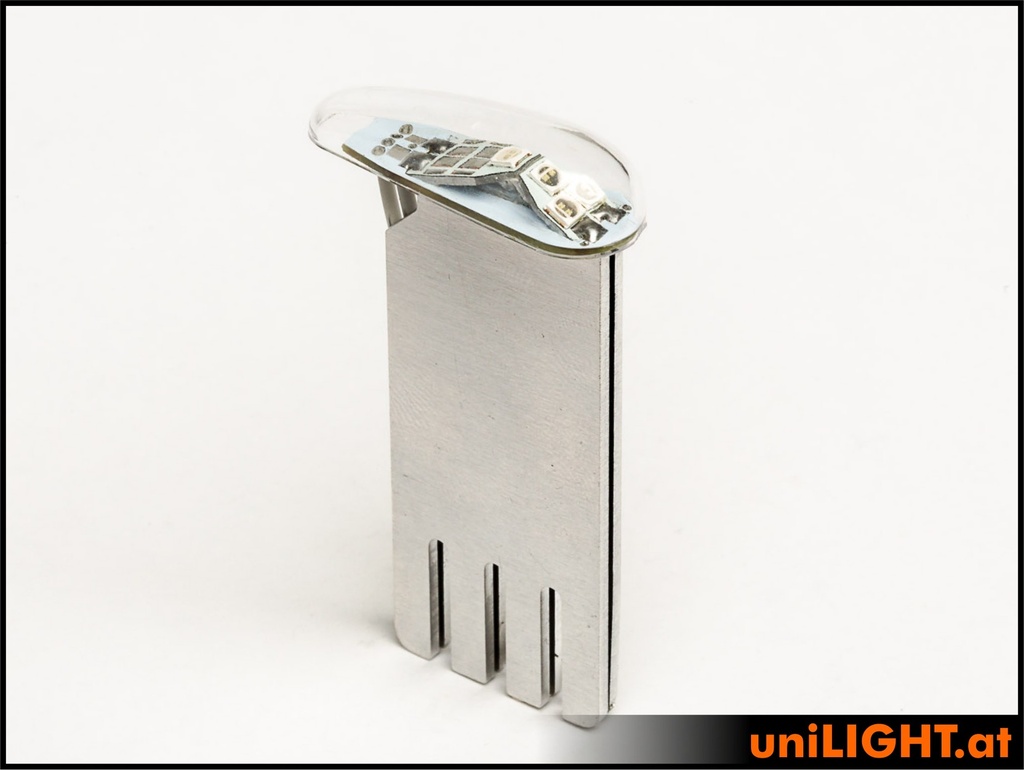

12mm PRO Navigation Light, 8Wx2, T-Fuse
PRO12F-080x2
High performance position light
The angled design ensures superior illumination and therefore an excellent visibility with minimal glare. This position light is forward- and back-oriented and has an integrated thermal fuse. The extremely compact design makes it easy to integrate on smaller models.
Order includes a highly transparent and extremely break-proof cover cap made of injection-molded polycarbonate. The cap must be glued to the light module on the model.
Electricity: 8W reference power,
Voltage: 8(12)V, 0.65A
Beam angle: 0-180°
Light intensity: 170 Lumen RED
Light intensity: 320 Lumen GREEN
Light intensity: 550 Lumen WHITE
Total mass: 12.5x38x60mm
Weight: 13g (without cable)
Equipped with 1m silicone connection cable, fully assembled with high-quality polycarbonate cap
| Operating Voltage: 2S/8V or 3S/12V with additional resistor |
| Cable Length: 1m Silicone 0.25mm² |
| Design: profile-shaped |
| Function: Navigation/Position Light |
| Dimensions: 12mm |
The cap must be glued to the light module on the model.
Please note that high-performance LEDs can become very warm, up to 70°C is completely normal. These heat sink mounted lights are suitable for continuous operation when air convection is possible. After installation, check the operating temperatures. We cannot guarantee against overheating.
Warning: The LED lights are extremely bright! Never look directly into an LED!
