11mm PRO Navigation Light, 8Wx2, SHORT, T-Fuse
PRO11F-080x2
Powerful strobe light in x2 Technology - double the luminous power with the same heat dissipation!

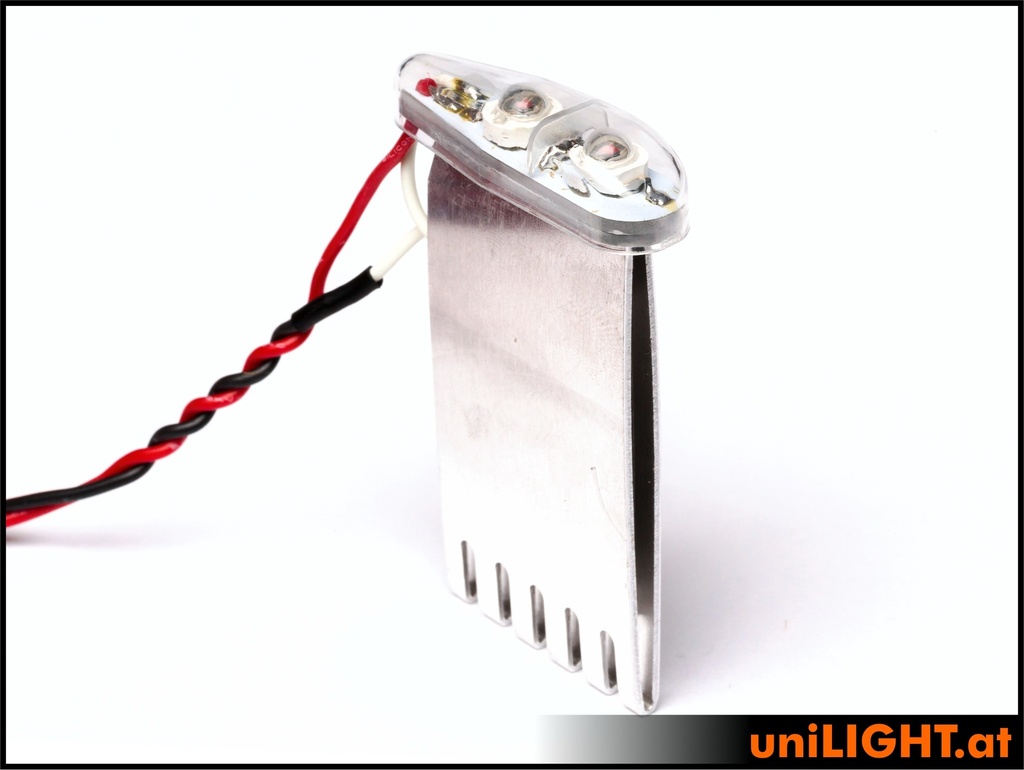

The 11mm series profile light is sleek on the outside, making it visually suitable even for smaller models. With x2 power the light has an enormous brightness and is an eye-catcher even for bigger models. The internally positioned cooling surface enables astonishingly compact dimensions with a unique slim design.

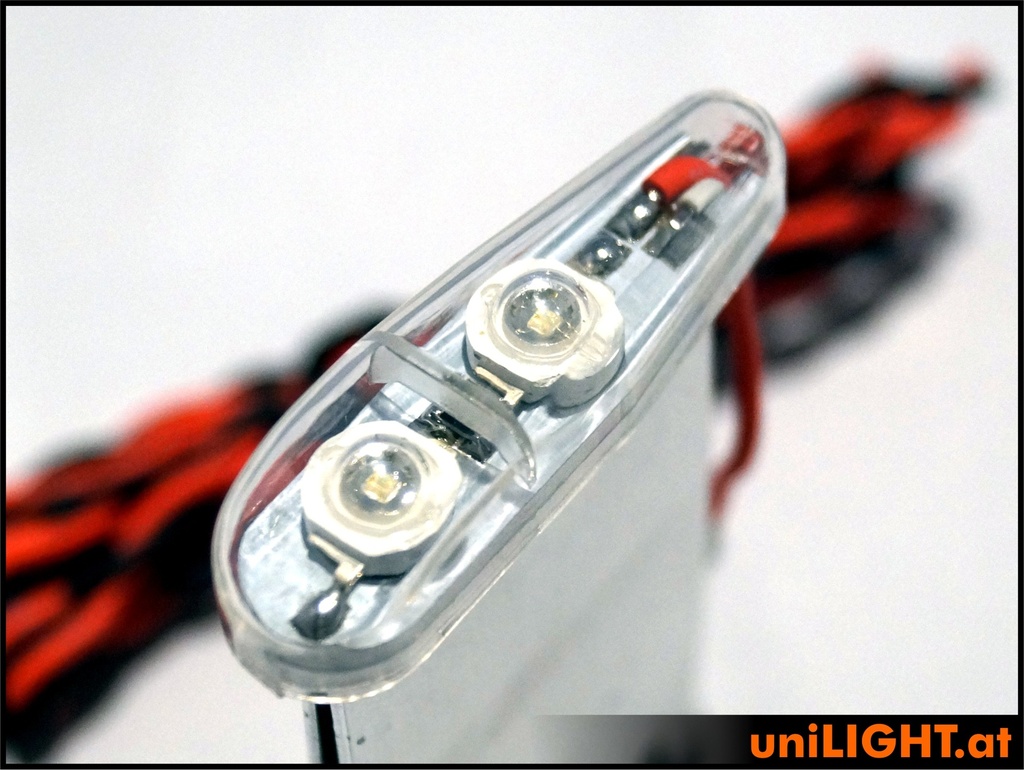

The profile-shaped polycarbonate cover is initially only clipped on and can be separately painted. It is highly transparent and impact-resistant. The assembly of the light is astonishingly easy: simple surface mounting, only a 5x33mm slot is necessary. This way, the luminaire can be also mounted on smaller wing tips or fuselage. If desired, the light can be recessed up to 4mm, thus appearing even smaller, than it is. The cover must be glued after final assembly.
Das Licht ist mit einer integrierten Temperatursicherung ausgerüstet, diese schaltet bei 65°C ab und aktiviert sich selbstständig nach dem Abkühlen wieder.
Electricity: 8Wx2 reference power,
Voltage: 8(12)V, 0.7A
Overheating protection: the lights will safely turn off/be cycled at 65-70°C.
Beam angle: >160°
Light intensity: 2x80 Lumen RED
Light intensity: 2x200 Lumen WHITE
Dimension light cap: 11.5x42.5x10mm,
can be installed recessed up to 4mm without loss of beam angle
Total mass: 11.5x42.5x10mm
Weight: 5g (without cable)

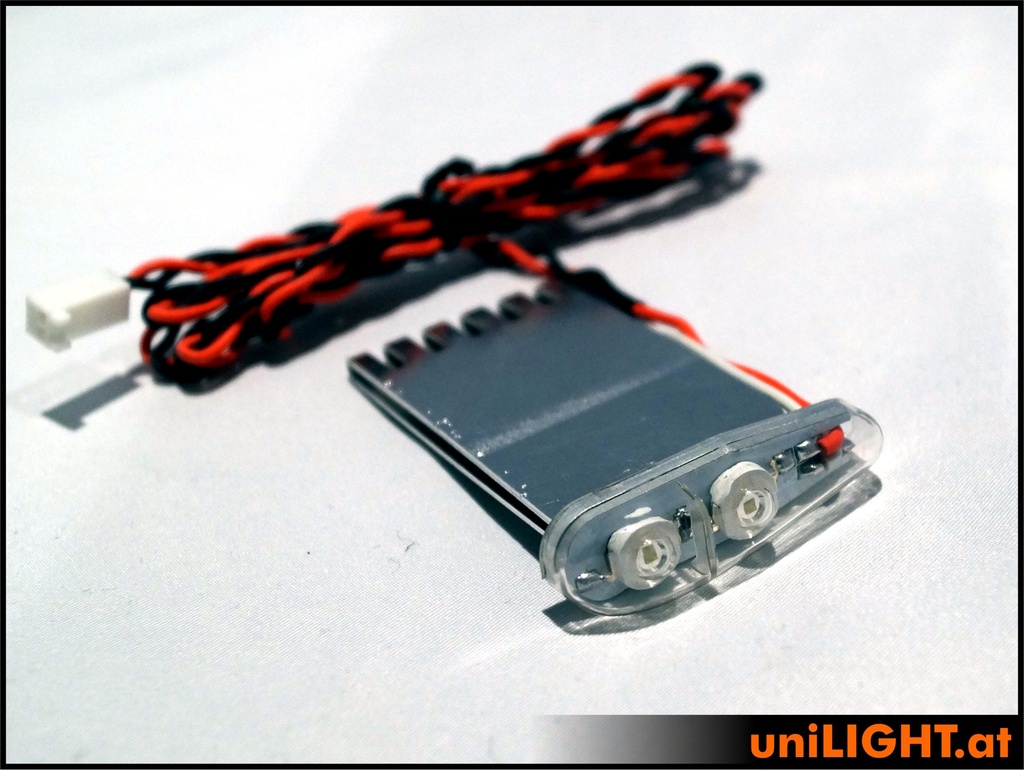

Equipped with 1m silicone cable and pre-configured resistor for 2S.
| Operating Voltage: 2S/8V or 3S/12V with additional resistor |
| Cable Length: 1m Silicone 0.25mm² |
| Design: profile-shaped |
| Function: Navigation/Position Light |
| Dimensions: 11mm |
The profile-shaped polycarbonate cap is only attached when delivered. This can be painted separately, is highly transparent and unbreakable. Mounting the lamp is surprisingly easy: for simple surface mounting, only a 5x33mm slot is necessary, which means the lamp can also be mounted on small edge arches or the back of the fuselage. If desired, the lamp can also be installed recessed by up to 4mm and has an even smaller design. The cap must be glued after final assembly.
Please note that high-performance LEDs can get very warm, up to 70°C is completely normal. These heat sink mounted lights are suitable for continuous operation when air convection is possible. After installation, check the operating temperatures. We cannot guarantee against overheating. Attention: The LED lights are extremely bright! Never look directly into an LED!
