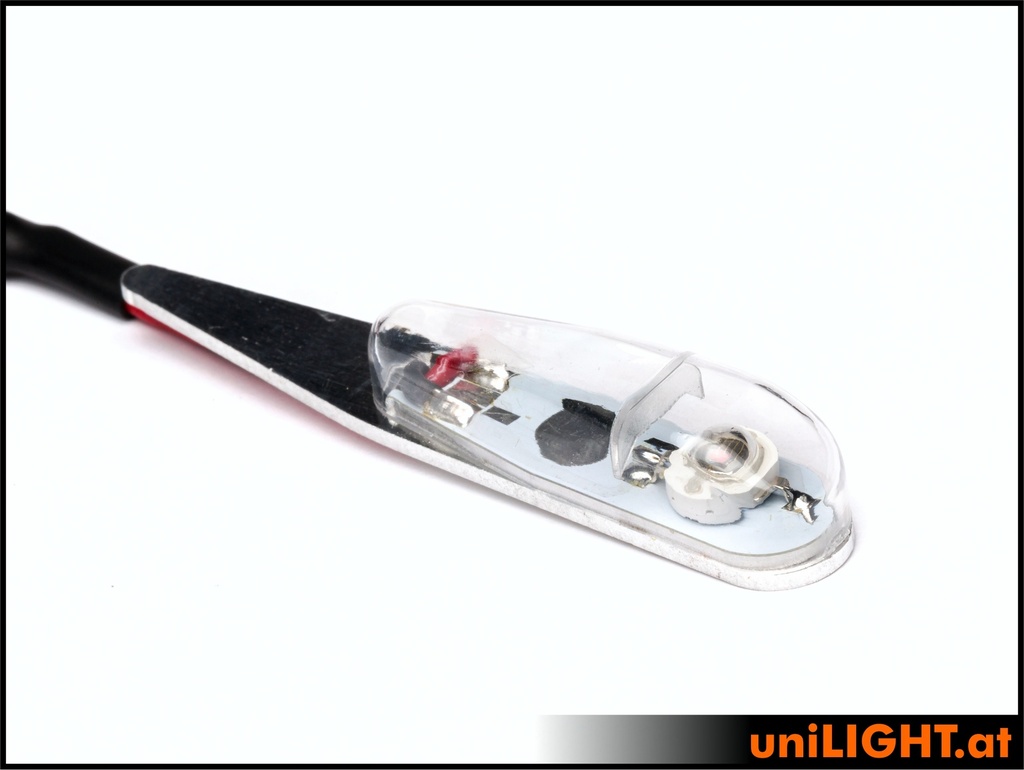

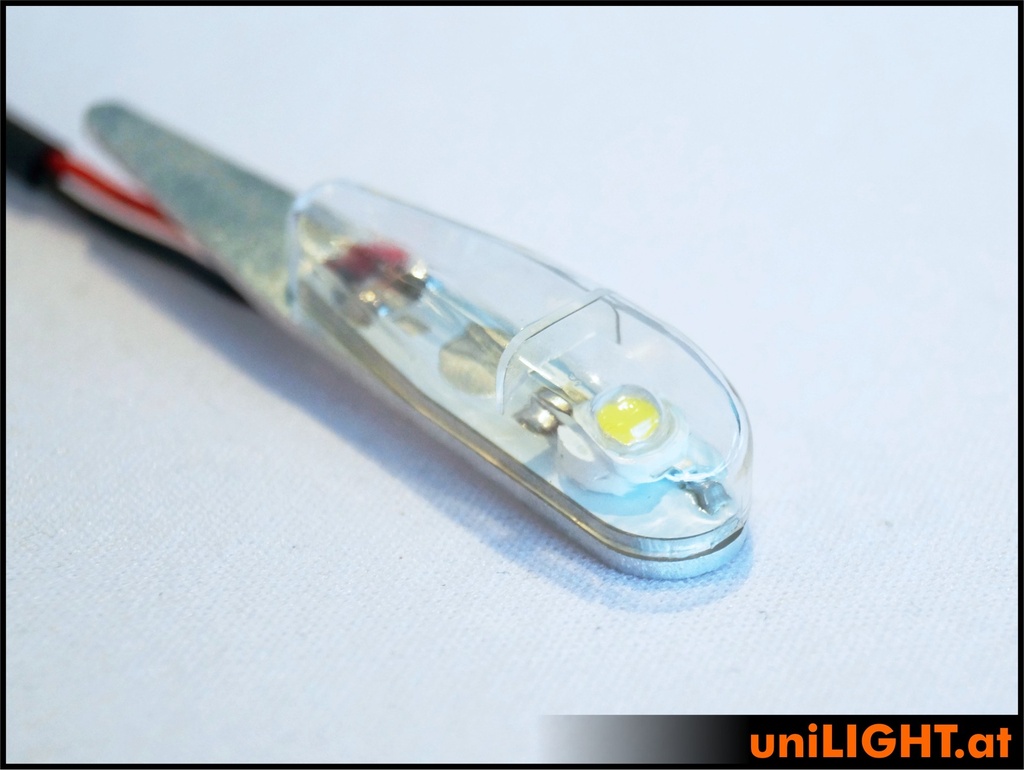

11mm PRO Navigation Light, 4W, SHORT
PRO11X-040
Affordable position and strobe light
The 11mm series profile light is sleek on the outside, making it visually suitable even for smaller models. The profile-shaped polycarbonate cover is initially only clipped on and can be separately painted. It is highly transparent and impact-resistant. If desired, the light can be recessed up to 4mm, or the cover can be sanded down for an even smaller form factor. The cover must be glued after final assembly.
Electricity: 4W reference power,
Voltage: 8(12)V, 0.35A
Beam angle: >160°
ight intensity: 50 Lumen RED
Light intensity: 80 Lumen GREEN
Light intensity: 100 Lumen WHITE
Dimension assembly pin: 33x5*60
Dimension light cap: 11.5x42.5x10mm,
can be installed recessed up to 4mm without loss of beam angle
Total mass: 11.5x70x35mm
Weight: 8g (without cable)

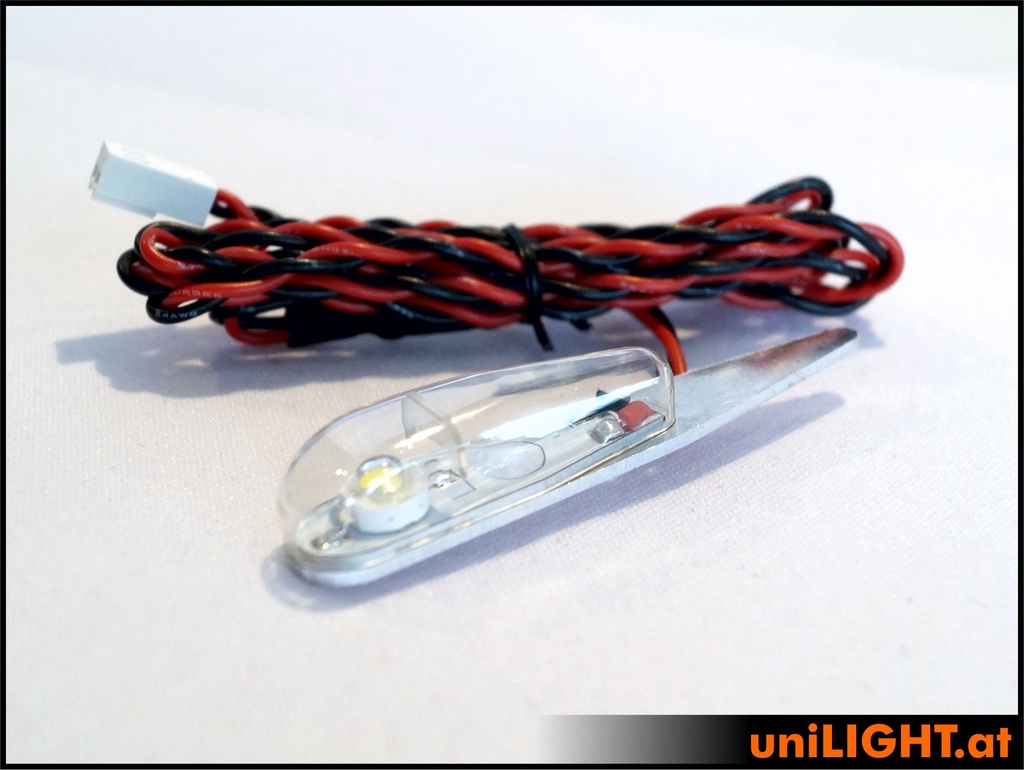

Equipped with 1m silicone cable and pre-configured resistor for 2S.
| Operating Voltage: 2S/8V or 3S/12V with additional resistor |
| Cable Length: 1m Silicone 0.25mm² |
| Design: profile-shaped |
| Function: Navigation/Position Light |
| Dimensions: 11mm |
The cover must be glued after final assembly
Please note that high-performance LEDs can become very warm, up to 70°C is completely normal. These heat sink mounted lights are suitable for continuous operation when air convection is possible. After installation, check the operating temperatures. We cannot guarantee against overheating.
Warning: The LED lights are extremely bright! Never look directly into an LED!
