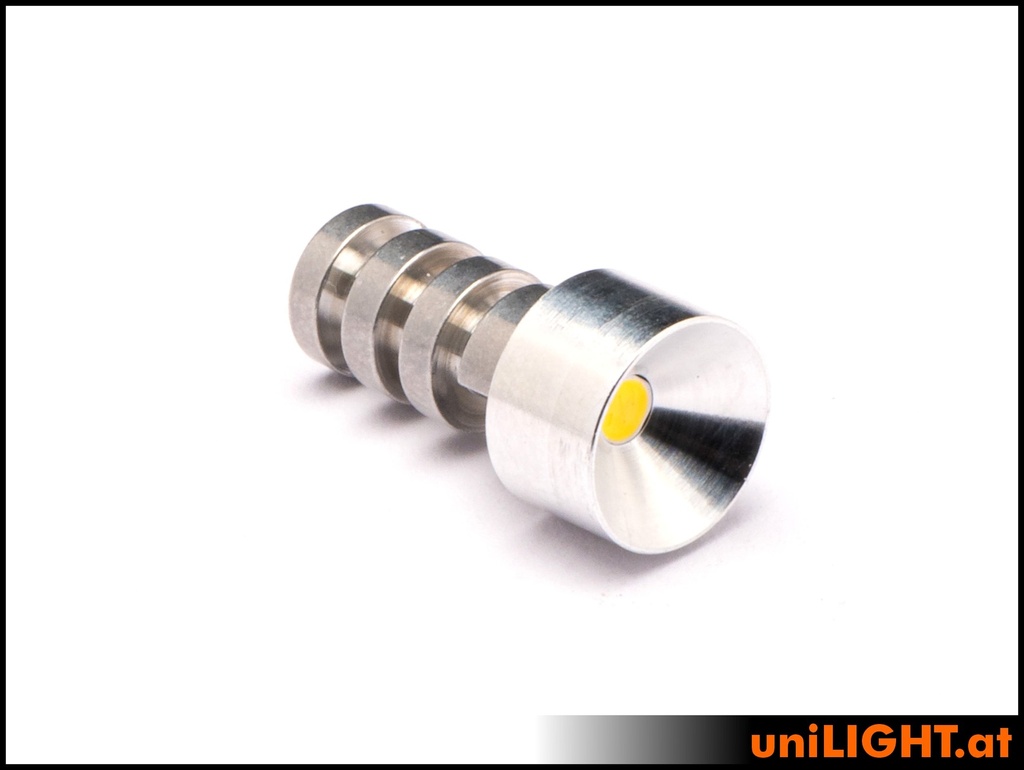

10mm Spotlight, 2Wx2

https://www.unilight.at/web/image/product.template/1217/image_1920?unique=c7f5b84

SPOT10-020x2

Compact 10mm aluminum spotlight

A powerful LED chip in a very compact, CNC-manufactured 10mm aluminum reflector, which boasts a unique feature in this extremely slim design. Thanks to the full aluminum build, it delivers an outstanding 150 lumens of light output when used as a landing light, operating very efficiently in x2 technology. This 10mm unit, with an approximate 100° beam angle, outshines all conventional plastic spotlights while being only a fraction of their size.

Technical Data:

Performance: 2Wx2 reference power
Voltage: 8V, use an additional resistor for 12V!
Electric current: 0.15A
Beam angle: ~100°
Light intensity: ~150 Lumen WHITE
Light intensity: ~150 Lumen WARMWHITE
Dimension: D10x20mm, Mounting hole D7mm
Weight: 1g (without cable)

Purpose of Use:

Best suited as a landing light.

Delivery Content:

Equipped with a 0.5m connection cable.

17.42 € 17.42 EUR 17.42 €

17.42 €

Not Available For Sale

  • Colour
  • Cable Length
  • Operating Voltage
  • Design
  • Dimension
  • Function

This combination does not exist.

Contact Us
Cable Length: 0.5m PTFE 0,14mm²
Operating Voltage: 2S/8V or 3S/12V with additional resistor
Design: Round
Dimension: 10mm
Function: Spot




Short URL

Assembly Instruction:

A 7mm mounting hole is required.

Warning Notice:

Ensure sufficient cooling during operation. Our spotlights are optimized for use in model construction and should only be operated for about 3-4 minutes at a time with a fully charged battery without an additional cooling – intended for use as landing lights! For other applications, improving the cooling is, of course, always possible.
Warning: The LED lights are extremely bright! Never look directly into an LED!
