10mm PIN Strobe light 8Wx2, SHORT
PIN10X-080x2

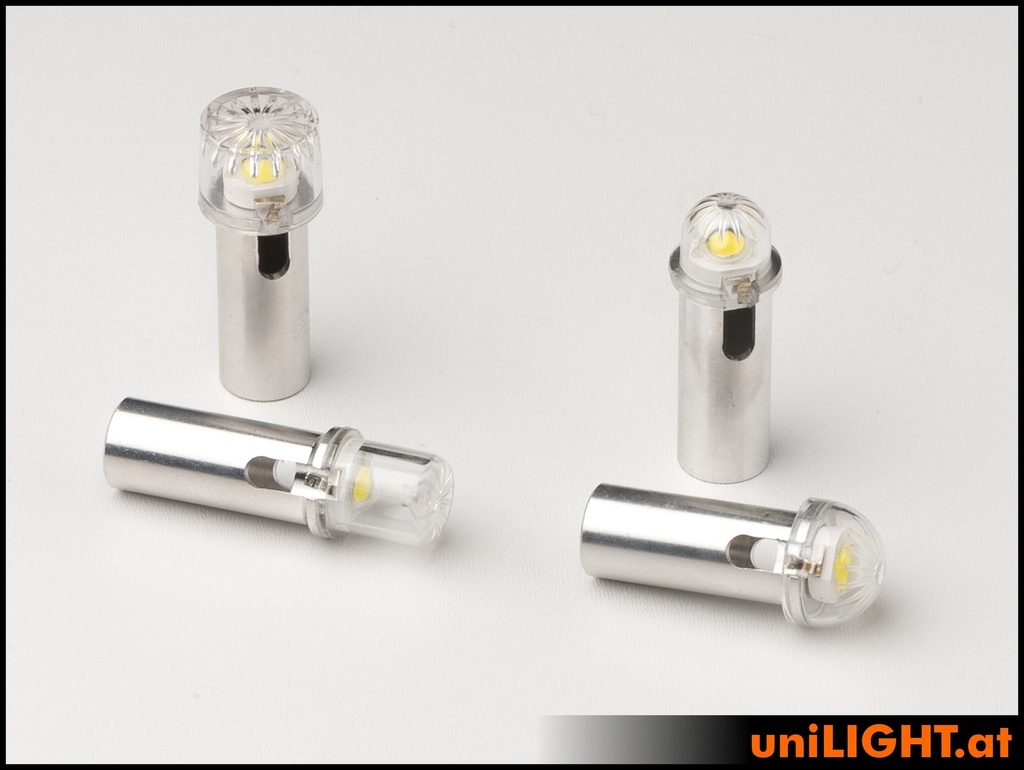

Polycarbonat Kappen zur freien Verwendung bei. Short high-performance light with 8Wx2 reference power for navigation light purposes on small to medium-sized models. The pen light is delivered pre-assembled on a CNC-manufactured aluminum heat sink and ready for use, and 5 high-strength polycarbonate caps are included for versatile use.
Electricity: 8Wx2 reference power,
Voltage: 8(12)V, 0.7A
Beam angle: >160°
Light intensity: ~190 Lumen RED
Light intensity: ~220 Lumen GREEN
Light intensity: ~520 Lumen WHITE
Total Dimension: D10x37mm, flange D12mm
Weight: 6g (without cable)

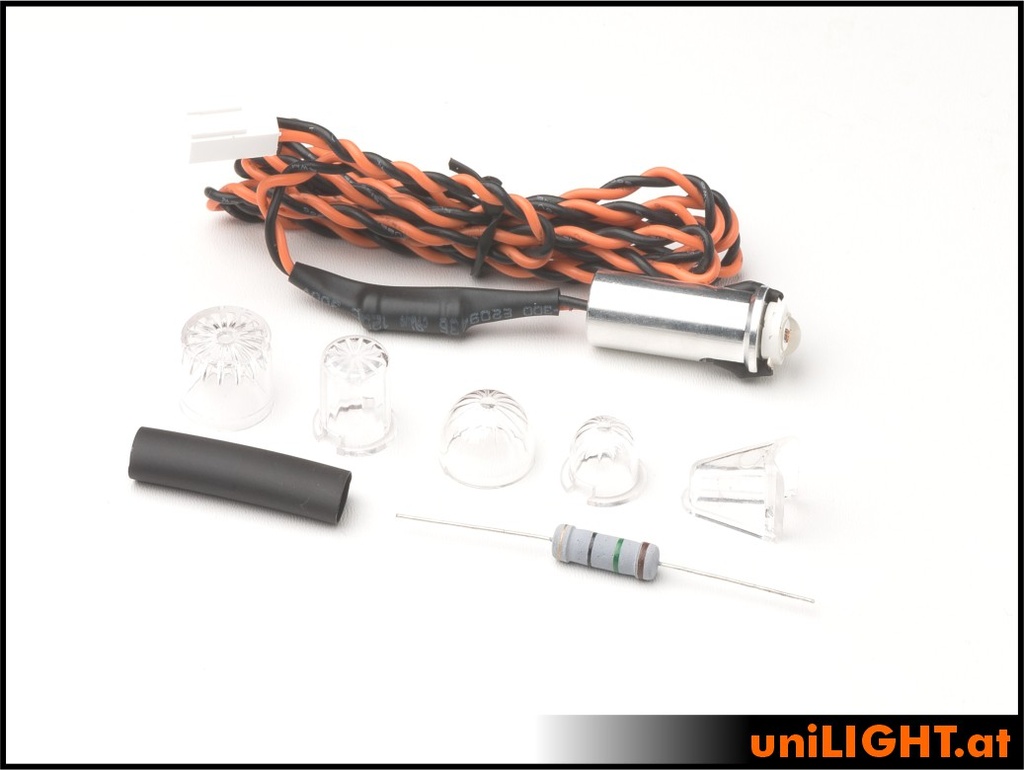

Equipped with 1m silicone cable and pre-configured resistor for 2S, use an additional resistor for 3S.

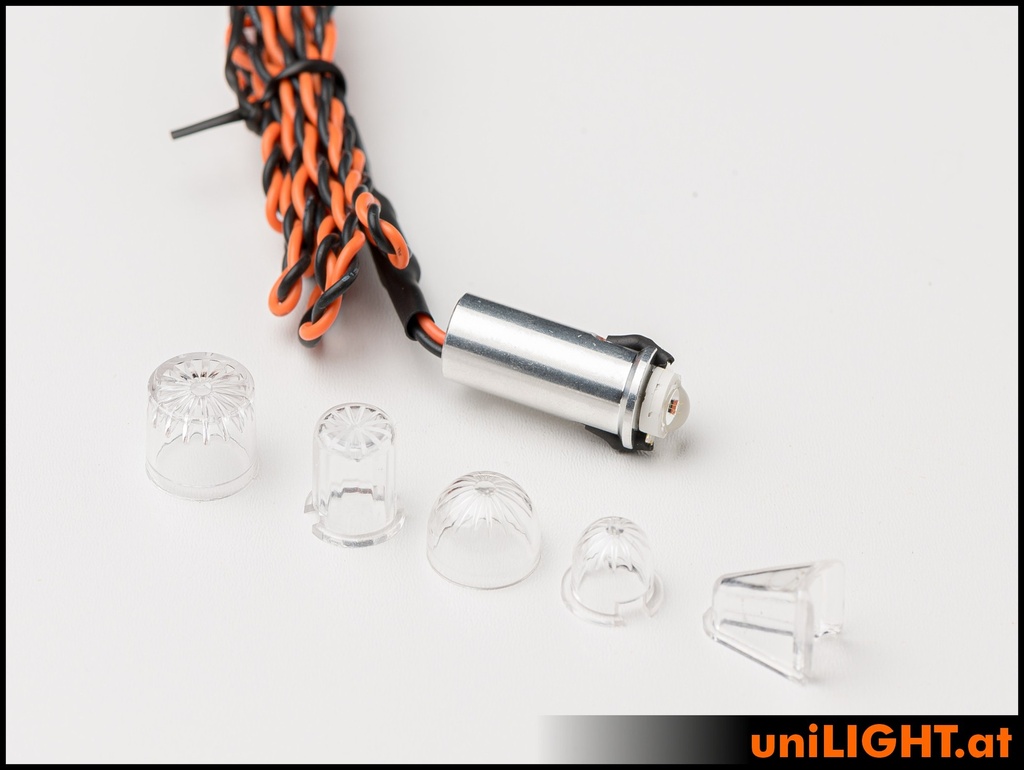

1x 10mm cylinder cap
1x 10mm round cap
1x 13mm cylinder callus
1x 13mm round cap
1x 10mm profile extension
| Operating Voltage: 2S/8V or 3S/12V with additional resistor |
| Cable Length: 1m Silicone 0.25mm² |
| Design: Round |
| Function: Navigation/Position Light |
| Dimensions: 10mm |
The caps can be glued separately before or after installing the light and/or painted in the model color. Any adhesive that does not evaporate is suitable for bonding, such as epoxy, Uhu Por, silicone, canopy glue,...
Please note that high-performance LEDs can become very warm, up to 70°C is completely normal. These heat sink mounted lights are suitable for continuous operation when air convection is possible. After installation, check the operating temperatures. We cannot guarantee against overheating.
Warning: The LED lights are extremely bright! Never look directly into an LED!
