10/24mm ROUND Navigation Light, 4W
RND-040

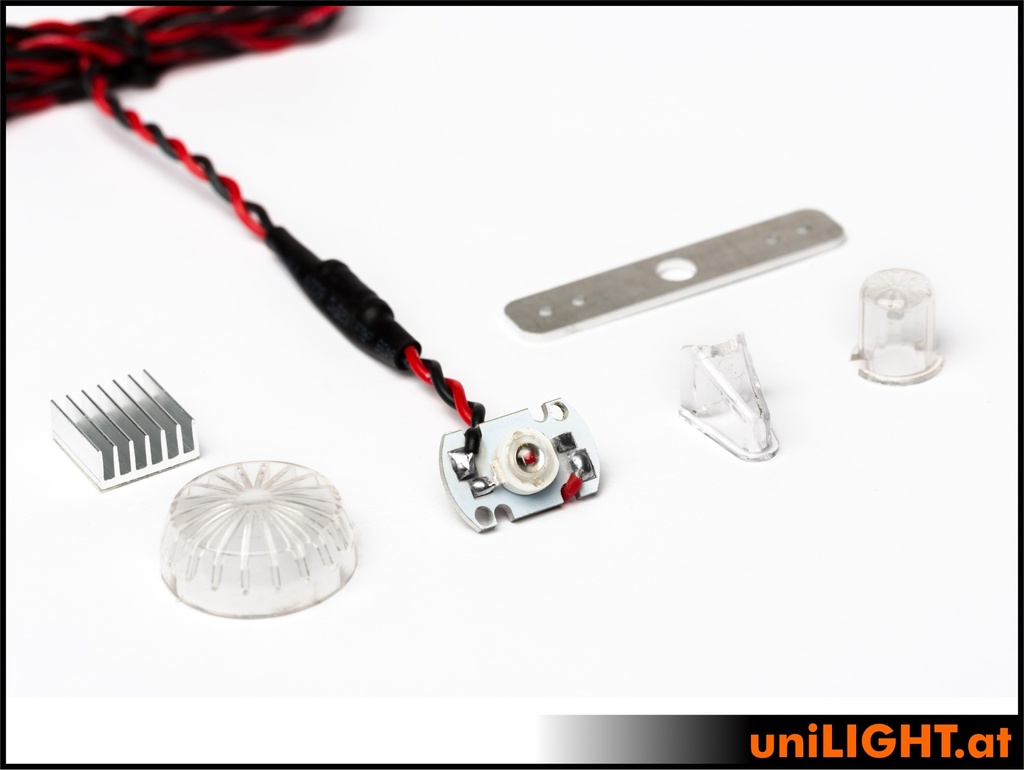

4W point light with three crystal-clear polycarbonate caps (10mm and 24mm). The module is delivered fully wired with an aluminum retaining plate for cooling and assembly. Another small heat sink is also included for alternative assembly with the smallest dimensions.
Electricity: 4W reference power,
Voltage: 8(12)V, 0.35A
Beam angle: ~160°
Light intensity: ~40 Lumen RED
Light intensity: ~75 Lumen GREEN
Light intensity: ~100 Lumen WHITE
Dimension base plate: 10x50mm Dimension
additional heatsink: 15x15x6mm

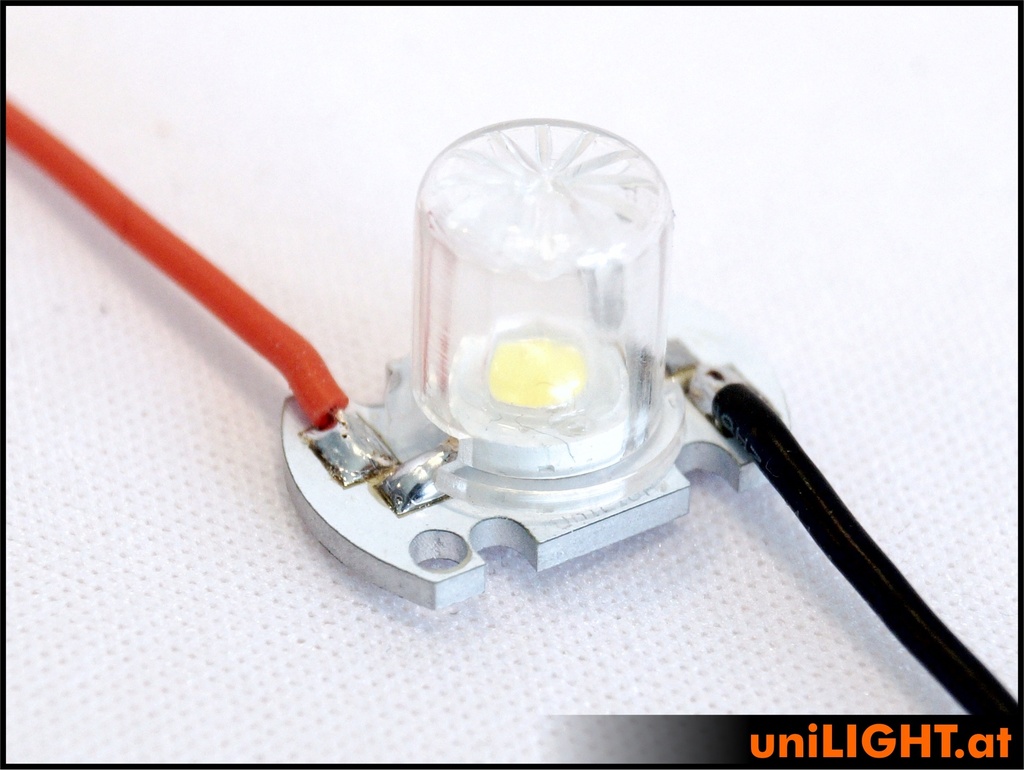

self-adhesive Small cap: D10x12mm + profile expansion

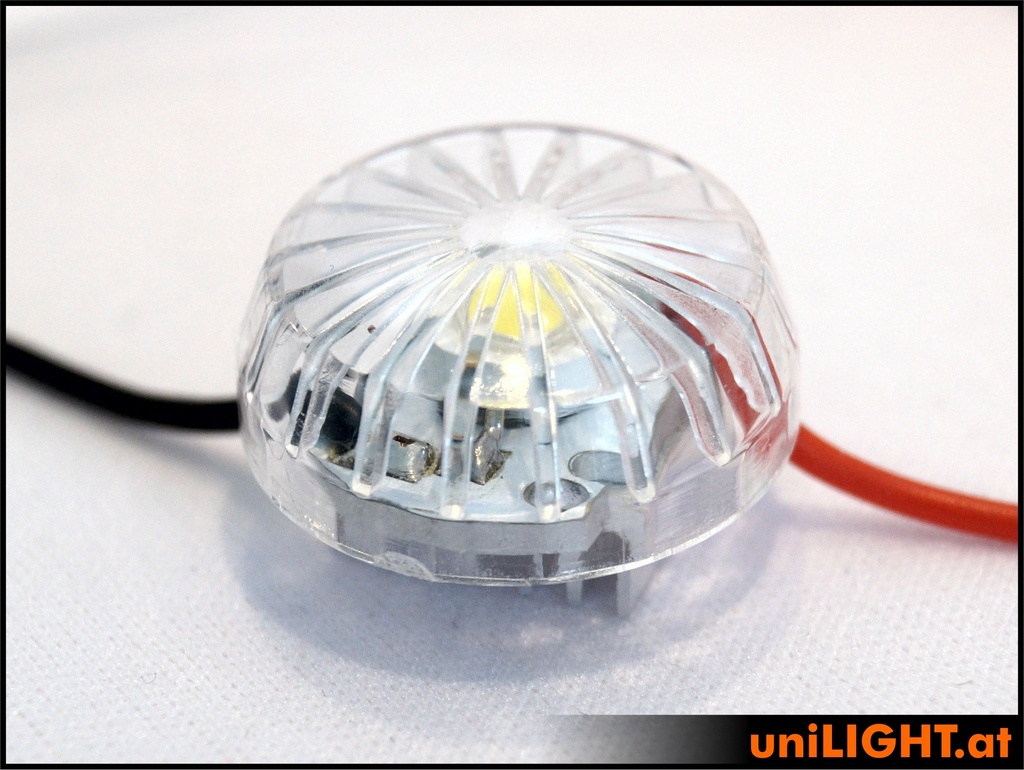

Big cap: D24x10mm
Weight: 6g (without cable)
With 1m connection cable and ready-made series resistor for 2S
| Operating Voltage: 2S/8V or 3S/12V with additional resistor |
| Cable Length: 1m Silicone 0.25mm² |
| Design: Round |
| Function: Navigation/Position Light |
| Dimensions: 10mm |
All you have to do is stick the desired cap and heatsink on with superglue. The 10mm cap serves as light distribution for concealed installation behind a GRP wall, the 24mm cap can be used for external installation as it completely covers the module. A polycarbonate profile extension is included as an accessory, which can optionally be glued to the 10mm cap.
Please note that high-performance LEDs can become very warm, up to 70°C is completely normal. These heat sink mounted lights are suitable for continuous operation when air convection is possible. After installation, check the operating temperatures. We cannot guarantee against overheating.
Attention: The LED lights are extremely bright! Never look directly into an LED!
