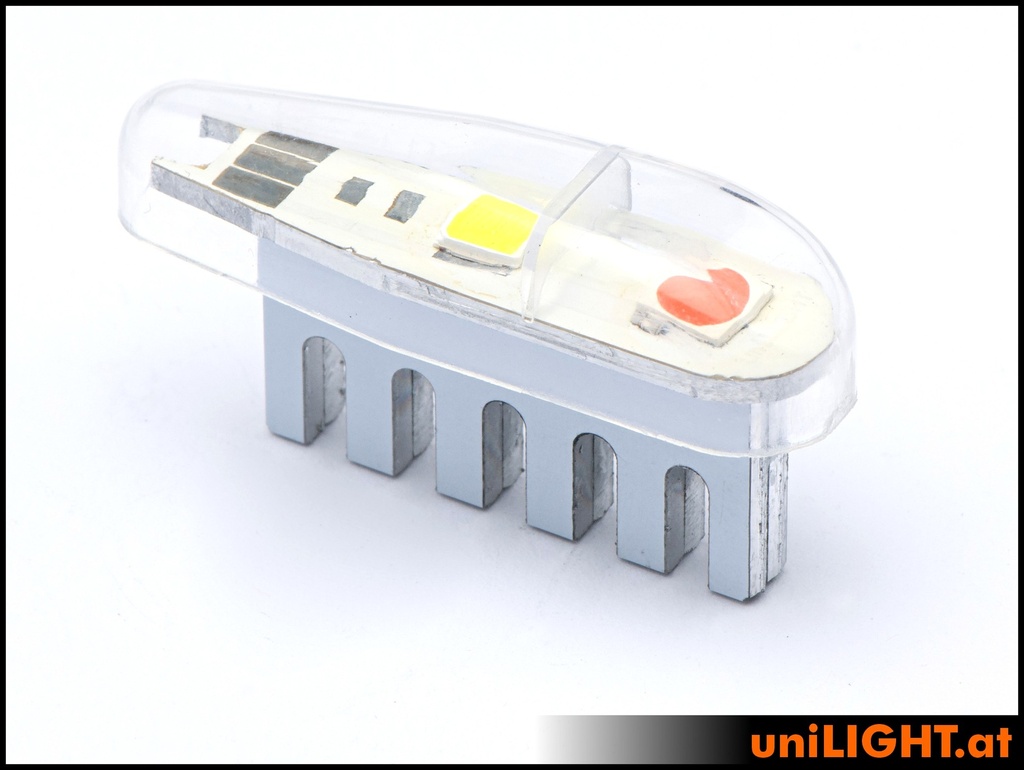

11mm DUAL Navigation + Strobe, 8Wx2, Economy SET
DUAL11E-080x2-PACK
The DUAL11mm in the ECONOMY version are suitable for surface models from 1.2m span.
Navigation and a great strobe light combined in one unit for cost-effective implementation of standard lighting systems. Enclosed heat sinks for self-assembly. The profile-shaped polycarbonate cap is highly transparent and extremely robust. Perfect for getting started in model lighting, for simple wooden models or foamies. This set includes a right position light in GREEN and a left position light in RED.
Lights from the ECONOMY series generally offer decent performance and excellent value for money. The setup is simpler and requires some self-assembly. They are only available as a set. While still much more powerful than lights from other budget suppliers, they are the smaller siblings of the PRO series lights, with reduced output/cooling, no directional setup, no thermal fuse, no LED clusters, and designed for 2S operation only.
Electricity: 2.5W RED and 6Wx2 WHITE
Voltage: 0.2/0.5A 8V/2S,
Beam angle: >120°
Light intensity: ~60 Lumen RED,02A
Light intensity: ~100 Lumen GREEN,0.2A
Light intensity: ~420 Lumen WHITE,0.5A
Dimension assembly pin: 3x30x15mm
Dimension light cap: 11.5x42.5x10mm,
can be installed recessed up to 4mm without loss of beam angle
Total mass: 11.5x42.5x25mm
Weight: 7g (without cable)
The set includes a right position light in GREEN and a left position light in RED.
Equipped with 1m silicone cable and pre-configured resistor for 2S.
| Operating Voltage: 2S/8V |
| Cable Length: 1m Silicone 0.25mm² |
| Design: profile-shaped |
| Function: Dual Navigation/Strobe |
| Dimensions: 11mm |
Internal Reference:
DUAL11E-080x2-PACK
Please note that high-performance LEDs can get very warm, up to 70°C is completely normal. These heat sink mounted lights are suitable for continuous operation when air convection is possible. After installation, check the operating temperatures. We cannot guarantee against overheating. Attention: The LED lights are extremely bright! Never look directly into an LED!
