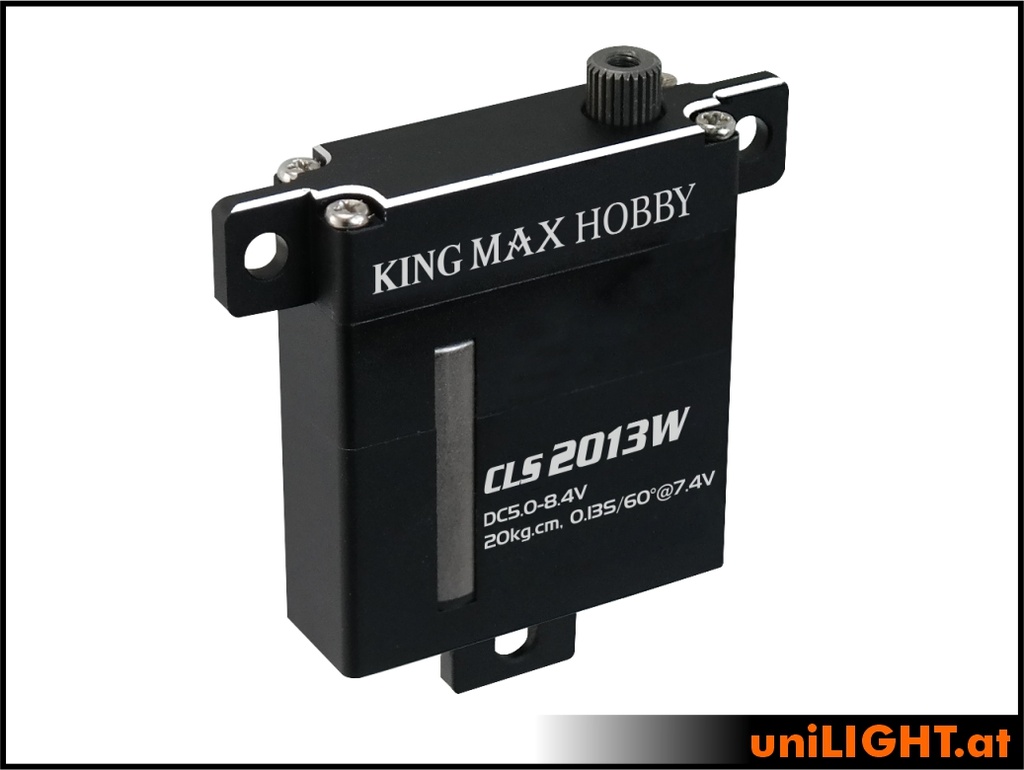

10mm Wing Servo CLS2013W, HV, MG
CLS2013W
Very compact wing servo of the 10mm class
The Kingmax CLS2013W 10mm Wing Servo offers exceptional performance in a compact form, ideal for high-precision RC applications.
With high-voltage (HV) capability, it operates efficiently at voltages up to 8.4V, providing reliable and consistent power for demanding tasks. The metal gears (MG) enhance durability and precision, ensuring smooth and stable operation under load.
Its 10mm profile makes it a perfect fit for space-constrained setups. Whether you're upgrading or building your next RC project, the CLS2013W delivers the reliability and efficiency you need in a compact servo.
Operating Speed(5.0V):0.19sec/60degrees
Operating Speed(6.0V):0.16sec/60degrees
Operating Speed(7.4V):0.13sec/60degrees
Operating Speed(8.4V):0.11sec/60degrees
Stall torque(7.4V):20.0kg.cm(277.80oz/in)
Maximum working torque(7.4V):13.0kg.cm(180.57oz/in)
Rated working torque(5.0V):5.70kg.cm(79.17oz/in)
Rated working torque(6.0V):7.80kg.cm(108.34oz/in)
Rated working torque(7.4V):8.80kg.cm(122.23oz/in)
Rated working torque(8.4V):10.8kg.cm(150.01oz/in)
Dimensions(L*W*H):30*10*35.5mm/1.17X0.39X1.38in
Weight:28.2g(0.99oz)
Connector Wire Length:JR185mm(7.22in)
Includes an aluminum servo lever
| Stall Torque (8.4V): 21.0kg.cm |
| Stall Torque (7.4V): 20kg.cm |
| Stall Torque (6V): 17.0kg.cm |
| Blockiermoment(5.0V): 14.80kg.cm |
| Speed (8.4V): 0.11sec/60° |
| Speed (7.4V): 0.13sec/60° |
| Speed (6V): 0.16sec/60° |
| Geschwindigkeit(5V): 0.19s/60° |
| Family: 10mm Wing |
| Weight: 28g |
| Gear: Steel |
| Body: Aluminum |
| Ball Bearings: 2BB |
| Motor: Coreless |
| Softstart: No |
| Programmable: No |
| Axis: Exclusive |
| Width: 10mm |
| Length: 36mm |
| Height: 35mm |
Internal Reference:
CLS2013W
