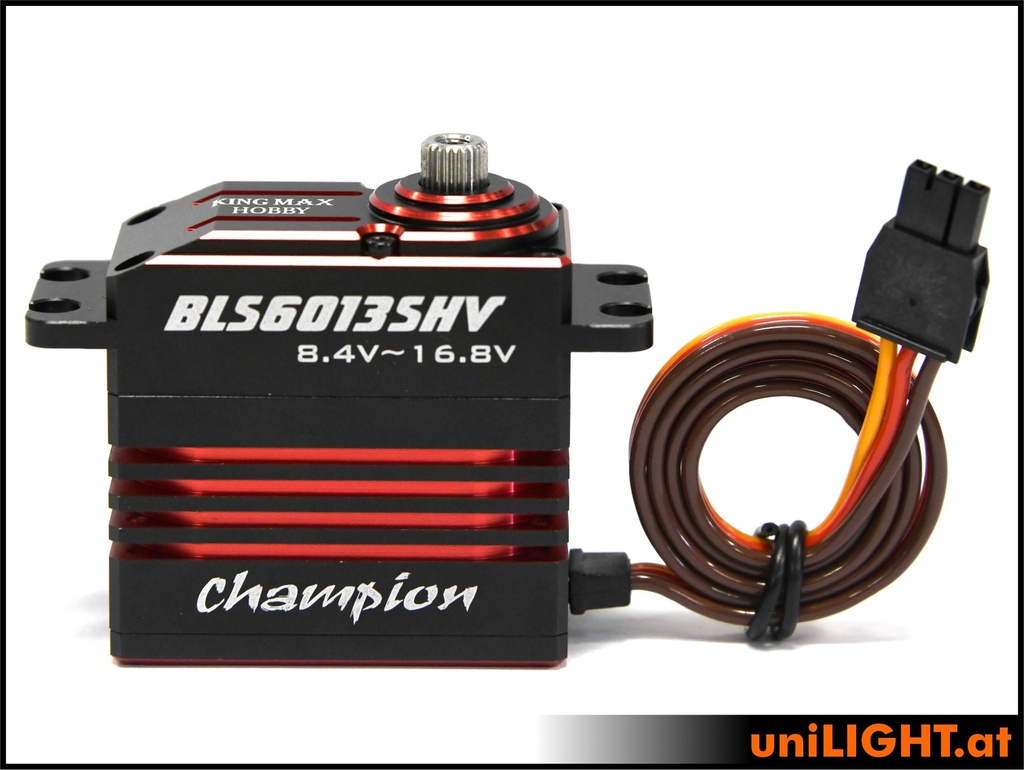

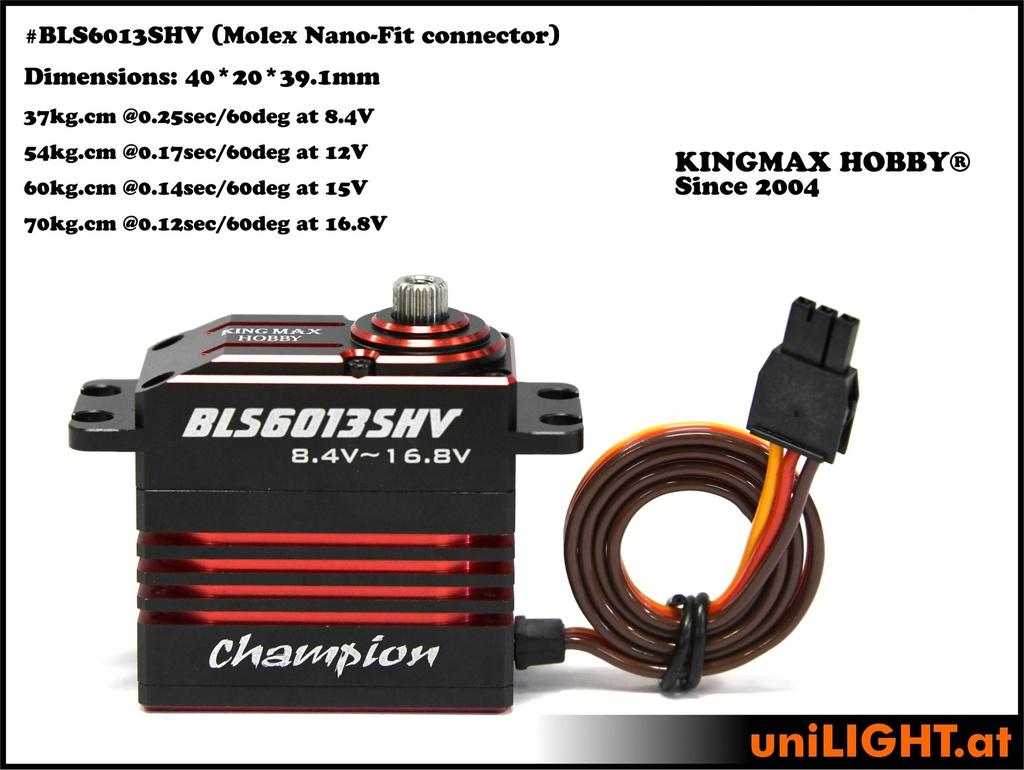

20mm  SHV-Servo BLS6013SHV, ALU, MG

https://www.unilight.at/web/image/product.template/3249/image_1920?unique=784d00e

BLS6013SHV

Double Voltager = Half Current!

The BLS6013SHV 20mm SHV Servo from the STORM series is a high-end brushless servo designed to deliver exceptional power and reliability, even for large-scale models.

Designed to run on 16.8V/4S supply, it offers double the voltage for half the current, making it an efficient choice for high-performance applications. Featuring steel gears and the best potentiometers, it guarantees precision, longevity, and smooth operation. With integrated soft-start functionality and a waterproof design, the BLS6013SHV provides reliable performance in even the most demanding conditions.

Its outstanding performance data make it the ideal choice for those seeking superior quality in their RC models.

Operating Speed(8.4V):0.25sec/60degrees
Operating Speed(12V):0.17sec/60degrees
Operating Speed(15V):0.14sec/60degrees
Operating Speed(16.8V):0.12sec/60degrees
Stall torque(16.8V):70g.cm
Dimensions:40*20*39mm
Weight:85g
Connector Wire Length: 310mm, Molex Nano-Fit

112.42 € 112.42 EUR 112.42 €

112.42 €

Not Available For Sale

  • Stall Torque (16.8V)
  • Blockiermoment (15V)
  • Blockiermoment (12V)
  • Stall Torque (8.4V)
  • Speed (16.8V)
  • Geschwindigkeit (15V)
  • Geschwindigkeit (12V)
  • Speed (8.4V)
  • Family
  • Weight
  • Gear
  • Body
  • Ball Bearings
  • Motor
  • Softstart
  • Programmable
  • Axis
  • Width
  • Length
  • Height

This combination does not exist.

Stall Torque (16.8V): 70kg.cm
Blockiermoment (15V): 60kg.cm
Blockiermoment (12V): 54kg.cm
Stall Torque (8.4V): 37kg.cm
Speed (16.8V): 0.12s/60°
Geschwindigkeit (15V): 0.14s/60°
Geschwindigkeit (12V): 0.17s/60°
Speed (8.4V): 0.25s/60°
Family: 20mm SHV
Weight: 85g
Gear: Steel
Body: Aluminum
Ball Bearings: 2BB
Motor: Brushless
Softstart: Yes
Programmable: No
Axis: 5.90/25T/Futaba
Width: 20mm
Length: 40mm
Height: 40mm

Internal Reference: BLS6013SHV
