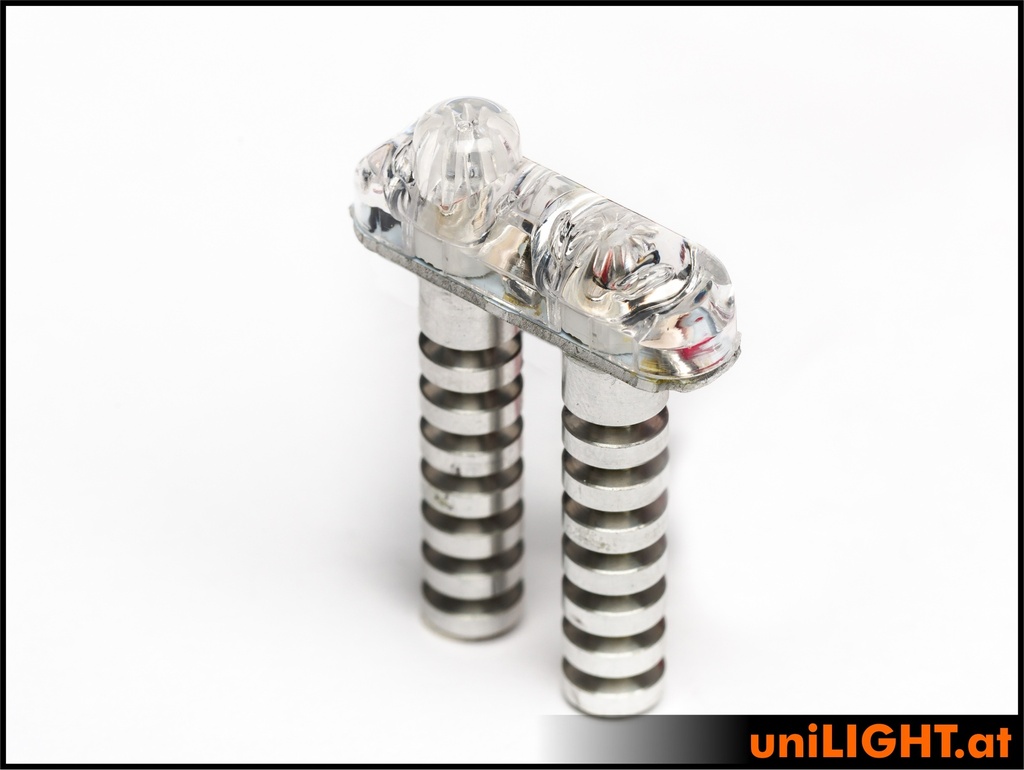

8mm MINI Navigation Light,4Wx2
PRO8-040x2
Powerful position/navigation light in x2 technology - double the brightness with the same heat output!
The 8mm series profile light is very slim and fits visually even on the smallest models. Due to x2 technology, it delivers an impressive light output, making it a real eye-catcher even for larger models. Astonishingly compact dimensions with a uniquely sleek design, combined with a special diffusion cap for optimal visibility.
The profile-shaped polycarbonate cap is initially just snapped-on and can be painted separately. It is highly transparent and very robust. The light is surprisingly easy to install: for a simple surface mount, only two 7mm holes are needed, allowing the light to be mounted even on small wingtips or fuselage backs. Optionally, the light can be recessed up to 3mm for an even more compact form.
Electricity: 4Wx2 reference power,
Voltage: 8(12)V, 0.35A
Beam angle: >160°
Light intensity: 2x50 Lumen RED
Light intensity: 2x70 Lumen GREEN
Light intensity: 2x100 Lumen WHITE
Dimension cooling pin: D7x29
Dimension light cap: 8x30x8mm, can be recessed up to 3mm without loss of beam angle
Weight: 7g (without cable)
Equipped with 1m silicone cable and pre-configured resistor for 2S
| Operating Voltage: 2S/8V or 3S/12V with additional resistor |
| Cable Length: 1m Silicone 0.25mm² |
| Design: profile-shaped |
| Function: Navigation/Position Light |
| Dimensions: 8mm |
For a simple surface mount, two 7mm holes are needed. After final assembly, the cap must be glued in place.
Please note that high-performance LEDs can become very warm, up to 70°C is completely normal. These heat sink mounted lights are suitable for continuous operation when air convection is possible. After installation, check the operating temperatures. We cannot guarantee against overheating. Attention: The LED lights are extremely bright! Never look directly into an LED!
