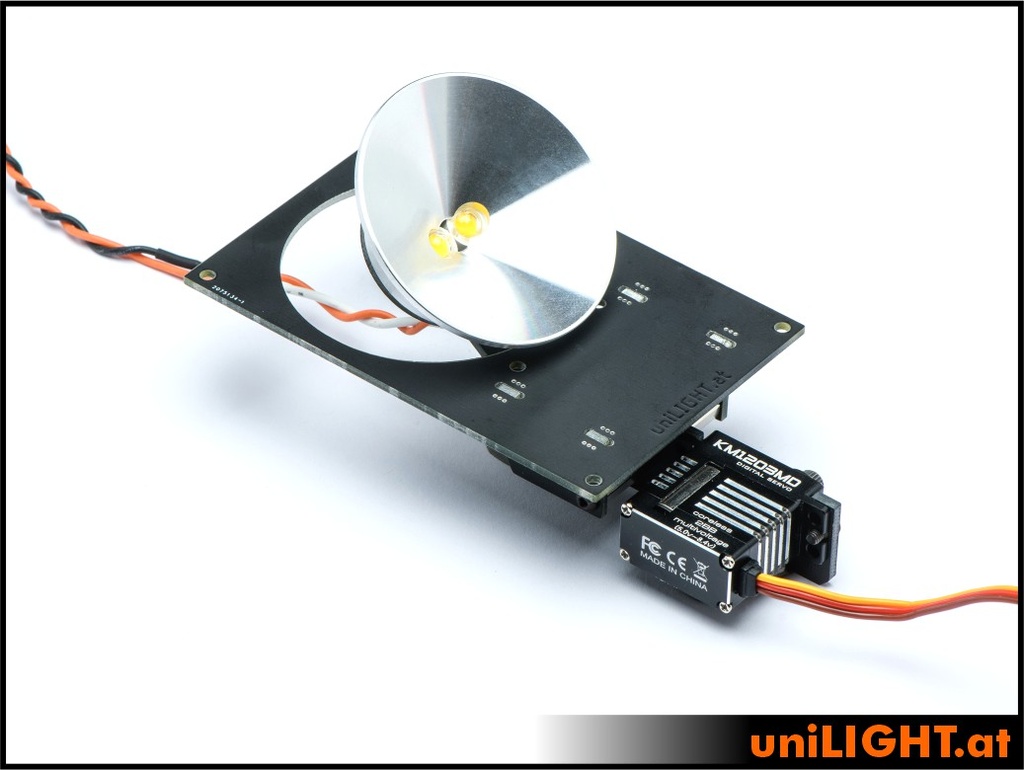

50mm Drop-out Spotlight, 12Wx2, T-FUSE, HV
FLIP50HVF-120x2
High-performance 40mm drop-out spotlight.
High-performance drop-out spotlight now easier than ever. Inspired by many full-scale aircraft, this feature can now be quickly and effortlessly integrated into model planes. An excellent addition for any aircraft, whether for scale realism, as a brake flap, or simply for practical use!
Our pre-assembled spotlights feature flat 50mm 12Wx2 lights with built-in thermal fuse, delivering impressive brightness in a compact form. The mechanism uses a Kingmax KM1203 HV servo; you only need to determine the mounting position and attach the pull rod. The design allows two different mounting positions of the pivot axis relative to the servo using the included parts: in front of the axis or, for fuselage installation, above the axis. Additionally, the set includes two spacers, enabling the spotlight to be mounted flush with a flat mounting plate or with a 2mm offset for installation in fiberglass shells.
Power: 12Wx2 reference power
Overheating protection: the lights will safely turn off/be cycled at 65-70°C
Voltage: 8V, use additional resistor for 12V!
Current: 1A
Beam angle: ~100°
Light intensity: 1000 lumens WHITE
Light intensity: 850 lumens WARM WHITE
Weight: 70g (with servo)
Mounting base: 58x90mm
Mounting BEHIND the axle height: 17/24mm
Mounting OVER the axle height: 36/39mm
Overheating protection: the lights will safely turn off/be cycled at 65-70°C.
Ready assembled with 1m connection cable
| Operating Voltage: 2S/8V or 3S/12V with additional resistor |
| Cable Length: 1m Silicone 0.25mm² |
| Design: Round |
| Dimension: 50mm |
| Function: Flip Spotlights |
Please pay attention to the operating temperature, we cannot accept any warranty due to overheating.
After installation, check the temperatures. The service life of the LED suffers if it is constantly operated at the upper power limit.
Attention: The LED lights are extremely bright! Never look directly into an LED!
