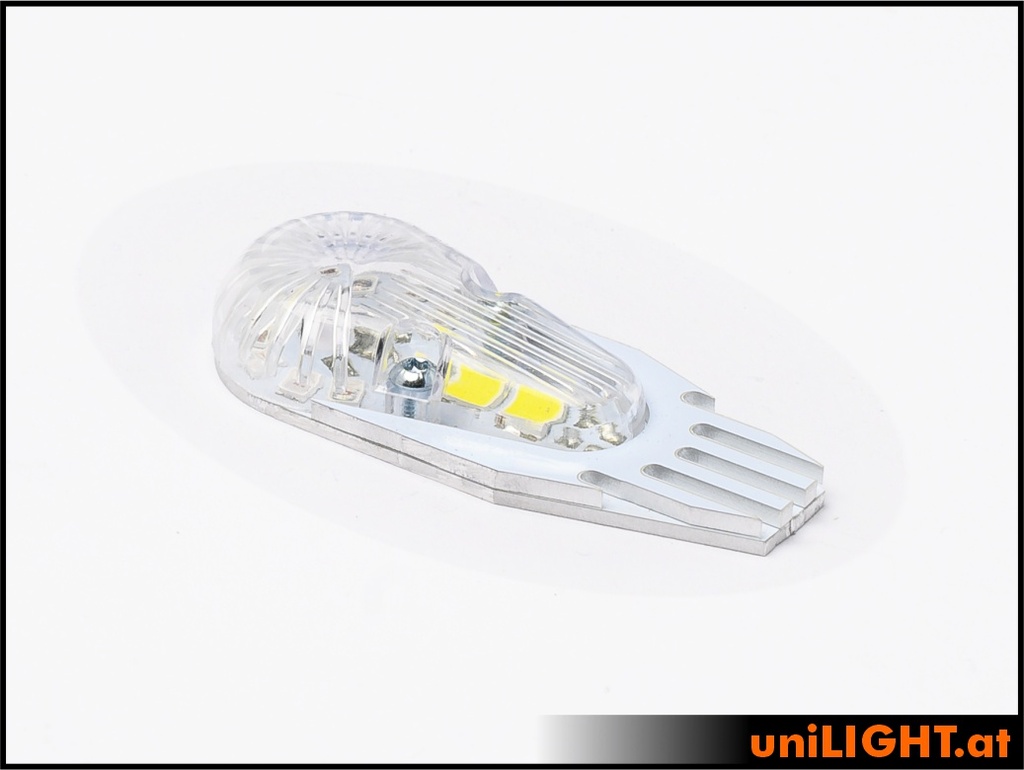

24mm PRO Navigation light, 8.5Wx2, T-Fuse

https://www.unilight.at/web/image/product.template/1453/image_1920?unique=38a6efe

PRO24F-085x2

Highly efficient Position/Navigation light

Powerful strobe light with x2 technology and integrated thermal fuse - double the light output with the same heat dissipation! This 24mm profile light is suitable for larger models with a wingspan of around 2.5 meters or more. The teardrop-shaped polycarbonate cover is screwed on and can be individually painted if desired. It is highly transparent and very robust. The included additional heat sink can be attached either inside or outside the lamp.
Sehr leistungsstarkes Positions-/Navigationslicht in x2 Technik mit integrierter Temperatursicherung - verdoppelte Lichtleistung und gleiche Abwärme! Das Profillicht der 24mm Serie passt auf größere Modelle ab zirka 2.5m Spannweite. Die profilförmige Polycarbonat Kappe wird aufgeschraubt und kann auch separat lackiert werden, ist hochtransparent und bruchfest. Der beiligende Zusatzkühlkörper muss innen oder außen an der Lampe verklebt werden.

Technical Data:

Performance: 8.5W reference power,
Voltage: 8V/12V, 0.7A
Overheating protection: the lights will safely turn off/be cycled at 65-70°C.
Beam angle: 160°
Light intensity: ~220 Lumen RED
Light intensity: ~400 Lumen GREEN
Light intensity: ~600 Lumen WHITE
Dimentions: 24x56x12mm
Mounting base thickness: 2mm
Weight: 9g (without cable)

Delivery Content:

Equipped with 1m silicone cable and pre-configured resistor for 2S, use an additional resistor for 3S.

22.42 € 22.42 EUR 22.42 €

22.42 €

Not Available For Sale

  • Operating Voltage
  • Cable Length
  • Colour
  • Design
  • Function
  • Dimensions

This combination does not exist.

Contact Us
Operating Voltage: 2S/8V or 3S/12V with additional resistor
Cable Length: 1m Silicone 0.25mm²
Design: profile-shaped
Function: Navigation/Position Light
Dimensions: 24mm

Short URL

Assembly Instruction:

The included heatsink has to be attached and glued either inside or outside the lamp to ensure optimal heat dissipation

Warning Notice:

Please note that high-performance LEDs can become very warm, up to 70°C is completely normal. These heat sink mounted lights are suitable for continuous operation when air convection is possible. After installation, check the operating temperatures. We cannot guarantee against overheating.
Warning: The LED lights are extremely bright! Never look directly into an LED!
