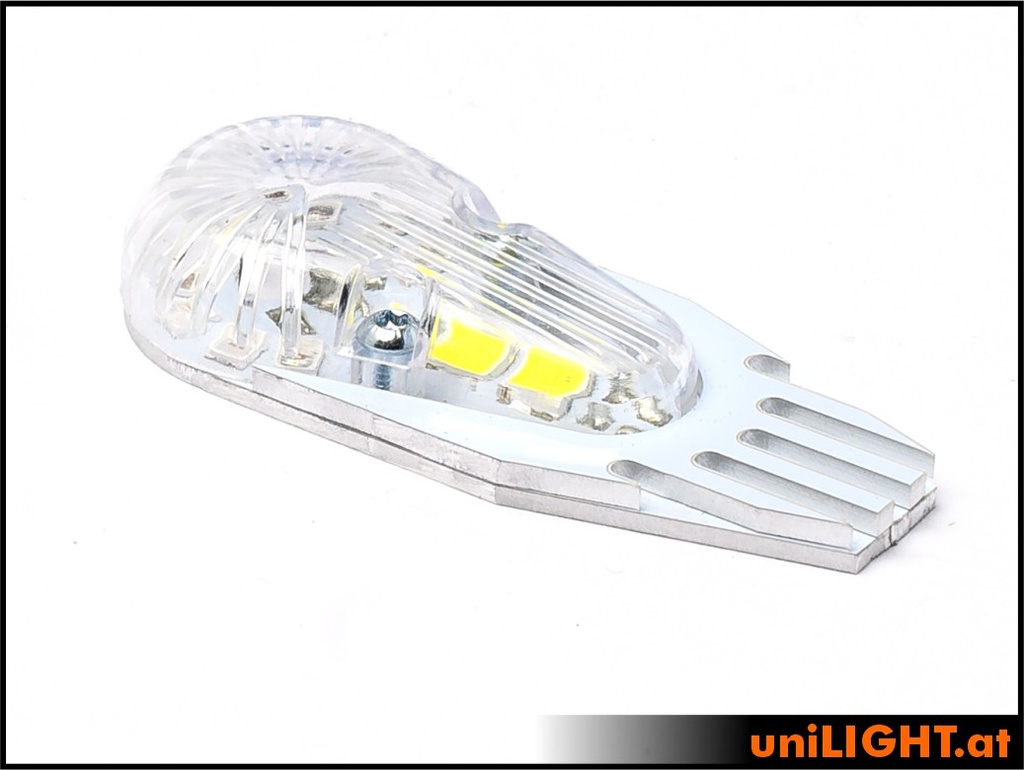

24mm DUAL Navigation + Strobe light, 24Wx2, T-Fuse

https://www.unilight.at/web/image/product.template/1458/image_1920?unique=38a6efe

DUAL24F-240x2

Ultra power combined position and strobe light with 1800 lumens light output!

This light offers an exceptional brightness and is suitable for larger models with a wingspan of around 2.5 meters or more and features both a position light and a strobe light in x2 technology. Both lights are individually controlled, with the unit having three wires and a common positive pole.

This light is equipped with an integrated thermal fuse that monitors the heat production constantly, shuts off in case of overheating and automatically reactivates after cooling.

The teardrop-shaped polycarbonate cover is screwed on and can be individually painted if desired. It is highly transparent and very robust. The included additional heat sink has to be attached either inside or outside the lamp.

Technical Data:

Performance: 16W reference power, 8(12)V, 1.35A und 8W reference power, 8(12)V, 0.6A
Overheating protection: the lights will safely turn off/be cycled at 65-70°C.
Beam angle: > 160°
Light intensity: ~190 Lumen RED
Light intensity: ~360 Lumen GREEN
Light intensity: ~1200 Lumen WHITE
Dimentions: 24x59x9mm
Mounting base thickness: 2mm
Weight: 9g (without cable)

Purpose of Use:

Best suitable for larger models with a wingspan of around 2.5 meters or more

Delivery Content:

Mit 1m Anschlusskabel und fertig konfektioniertem Vorwiderstand für 2S

33.25 € 33.25 EUR 33.25 €

33.25 €

Not Available For Sale

  • Operating Voltage
  • Cable Length
  • Colour
  • Design
  • Function
  • Dimensions

This combination does not exist.

Contact Us
Operating Voltage: 2S/8V or 3S/12V with additional resistor
Cable Length: 1m Silicone 0.5mm²
Design: profile-shaped
Function: Dual Navigation/Strobe
Dimensions: 24mm

Short URL

Assembly Instruction:

Zusätzlicher Kühlkörper, der innen oder außen auf das Kühlblech geklebt werden muss, je nach Einbauposition

Warning Notice:

Please note that high-performance LEDs can become very warm, up to 70°C is completely normal. These heat sink mounted lights are suitable for continuous operation when air convection is possible. After installation, check the operating temperatures. We cannot guarantee against overheating.
Warning: The LED lights are extremely bright! Never look directly into an LED!
