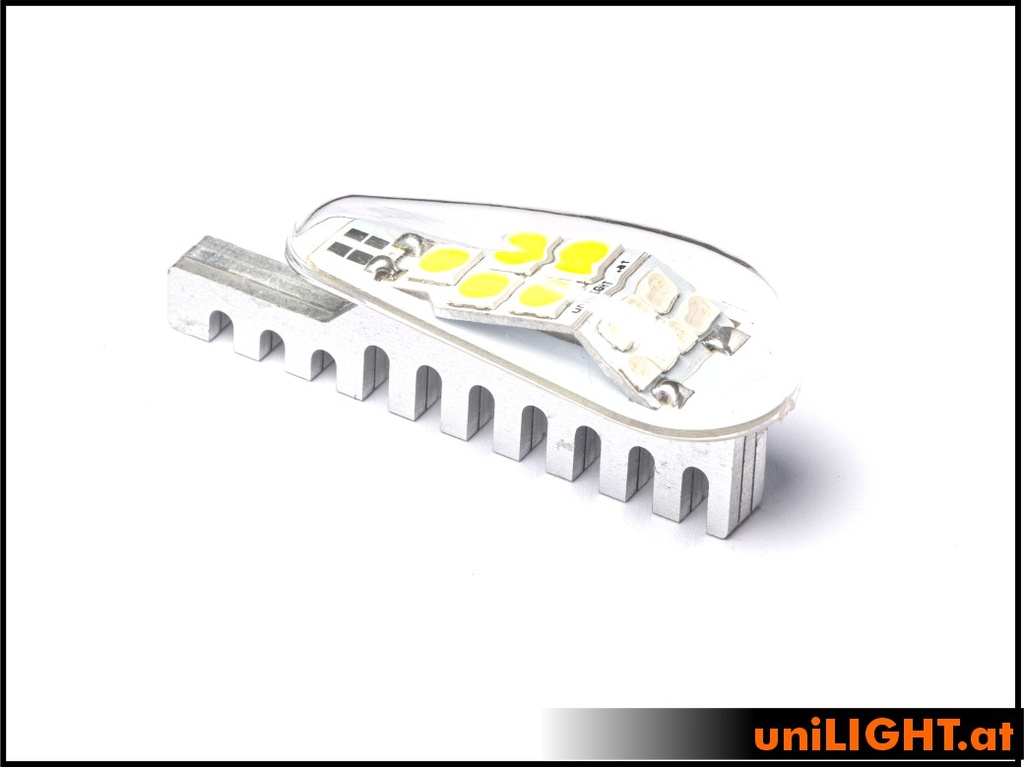

20mm DUAL Navigation + Strobe light, 21Wx2, T-Fuse
DUAL20X-210x2
Superior performance: DUAL20x - upper class in x2-technic for large fixed wing aircrafts.
One of the most powerful position and strobe lights combined in one unit that we have to offer. The profile light of the 20mm series has a stunning shape on the outside and also an inwardly recessed cooling surface. The profile-shaped polycarbonate cap is only snapped-on upon delivery. It can be painted separately, is highly transparent and extremely robust. A thermal fuse is also included to protect the lights against overheating
Elektrisch: 6Wx2 RED/GREEN; 15Wx2 WHITE reference power,
Voltage: 8(12)V
Overheating protection: the lights will safely turn off/be cycled at 65-70°C.
Beam angle: >160°
Light intensity: ~160 Lumen RED, 0.5A
Light intensity: ~330 Lumen GREEN, 0.4A
Light intensity: ~1500 Lumen WHITE, 1,25A
Dimentions light cap: 20x50x10mm
Dimentions: 20x59x23mm
Weight: 13g (without cable)
Equipped with 1m silicone cable and pre-configured resistor for 2S.
| Operating Voltage: 2S/8V or 3S/12V with additional resistor |
| Cable Length: 1m Silicone 0.5mm² |
| Design: profile-shaped |
| Function: Dual Navigation/Strobe |
| Dimensions: 20mm |
The profile-shaped polycarbonate cap is only snapped-on upon delivery. It can be painted separately.
Please note that high-performance LEDs can become very warm, up to 70°C is completely normal. After installation, check the operating temperatures. We cannot guarantee against overheating.
Warning: The LED lights are extremely bright! Never look directly into an LED!
