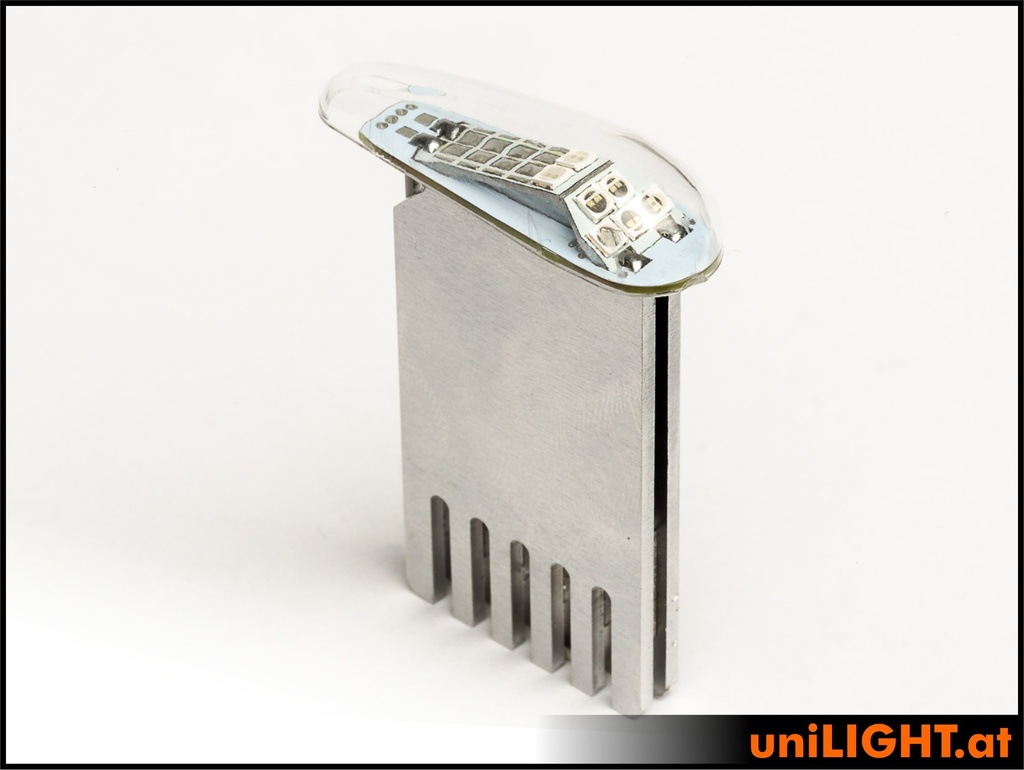

14mm PRO Navigation Light, 12Wx2, T-Fuse
PRO14F-120x2
Compact and very powerful position light
Forward angled design ensures superior illumination and therefore an excellent visibility with minimal glare. This position light is forward- and back-oriented and has an integrated thermal fuse. The extremely compact design makes it easy to integrate on smaller models. Order includes a highly transparent and extremely break-proof cover cap made of injection-molded polycarbonate. The cap must be glued to the light module on the model.
The light is equipped with an integrated thermal fuse that shuts off at 65°C and automatically reactivates after cooling down.
Electrical: 12W reference power with x2 technology,
Voltage; 8V / 12V, 0.95A
Overheating protection: the lights will safely turn off/be cycled at 65-70°C.
Beam angle: 0 to 180 °
Light intensity: ~ 190 lumens RED
Light intensity: ~ 570 lumens GREEN
Light intensity: ~ 950 lumens WHITE
Dimensions: 14.4x48x60mm
Weight: 26g (without cable)
Equipped with 1m silicone connection cable, fully assembled with high-quality polycarbonate cap
| Operating Voltage: 2S/8V or 3S/12V with additional resistor |
| Cable Length: 1m Silicone 0.25mm² |
| Design: profile-shaped |
| Function: Navigation/Position Light |
| Dimensions: 14mm |
The cap must be glued to the light module on the model.
Please note that high-performance LEDs can become very warm, up to 70°C is completely normal. These heat sink mounted lights are suitable for continuous operation when air convection is possible. After installation, check the operating temperatures. We cannot guarantee against overheating.
Warning: The LED lights are extremely bright! Never look directly into an LED!
