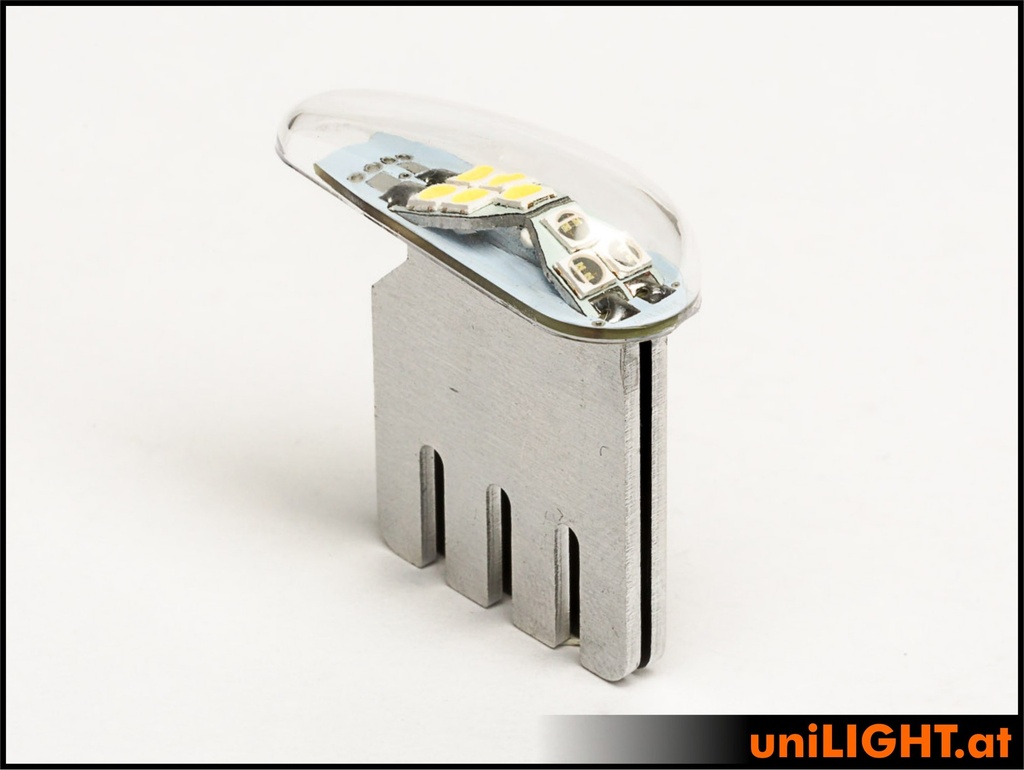

12mm DUAL Navigation + Strobe Light, 12Wx2
DUAL12-120x2
Compact and very powerful position light with integrated strobe!
The angled design ensures optimal forward emission for the position light and side emission for the strobe. Provides excellent visibility with minimal glare, just like the prototypes. The extremely compact design makes it easy to integrate in smaller models and tight spaces but also in bigger projects.
Order includes a highly transparent and extremely break-proof cover cap made of injection-molded polycarbonate. The cap must be glued to the light module on the model.
Electricity: 4,5Wx2 RED and 7,5Wx2 WHITE reference power,
Voltage: 8(12)V, 0,35 RED/GREEN, 0.6A WHITE
Beam angle: 0 bis 120° RED/GREEN, 60° bis 180° WHITE
Light intensity: ~90 Lumen RED
Light intensity: ~210 Lumen GREEN
Light intensity: ~600 Lumen WHITE
Total mass: 12.5x38x30mm
Weight: 7g (without cable)
Equipped with 1m silicone cable, fully assembled thermal fuse and high-quality polycarbonate cap
| Operating Voltage: 2S/8V or 3S/12V with additional resistor |
| Cable Length: 1m Silicone 0.25mm² |
| Design: profile-shaped |
| Function: Dual Navigation/Strobe |
| Dimensions: 12mm |
Order includes a highly transparent and extremely break-proof cover cap made of injection-molded polycarbonate. The cap must be glued to the light module on the model.
Please note that high-power LEDs can become very warm, up to 70°C is quite normal. These luminaires with heat sink mounting are suitable for continuous operation if air convection is possible. Check the operating temperatures after installation. We cannot accept any warranty due to overheating.
Warning: The LED lights are extremely bright! Never look directly into an LED!
