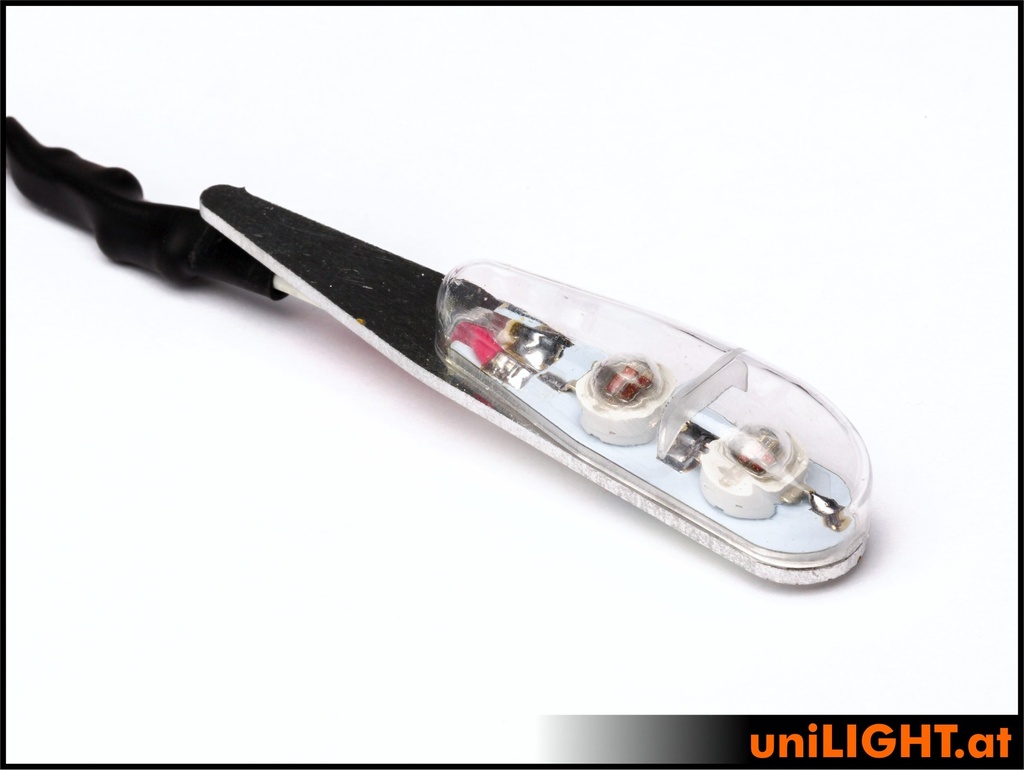

11mm PRO Strobe Light, 16Wx2, SHORT, T-Fuse
PRO11XF-160x2
Powerful strobe light in x2 Technology – extreme luminous power!
The 11mm series profile light is sleek on the outside, making it visually suitable even for smaller models. With x2 power the light has an enormous brightness and is an eye-catcher even for bigger models. This luminaire is exclusively suitable for flash mode or short blink operation. In order to ensure operational reliability of luminaire and your model, there is a thermal fuse located on the underside of the unit. If the light is used for too long and becomes too hot, this fuse will turn it off. In order to increase the life span of your lights, this function should not be relied on regularly!
Electricity: 16Wx2 reference power,
Voltage: 8(12)V, 1.4A
Overheating protection: the lights will safely turn off/be cycled at 65-70°C.
Beam angle: >160°
Light intensity: 2x200 Lumen RED
Light intensity: 2x400 Lumen WHITE
Dimension light cap: 11.5x42.5x10mm,
can be installed recessed up to 4mm without loss of beam angle
Total mass: 11.5x70x10mm
Weight: 8g (without cable)
Equipped with 1m silicone cable and pre-configured resistor for 2S.
| Operating Voltage: 2S/8V or 3S/12V with additional resistor |
| Cable Length: 1m Silicone 0.25mm² |
| Design: profile-shaped |
| Function: Strobe |
| Dimensions: 11mm |
Please note that high-performance LEDs can become very warm, up to 70°C is completely normal. These heat sink mounted lights are suitable for continuous operation when air convection is possible. After installation, check the operating temperatures. We cannot guarantee against overheating.
Warning: The LED lights are extremely bright! Never look directly into an LED!
