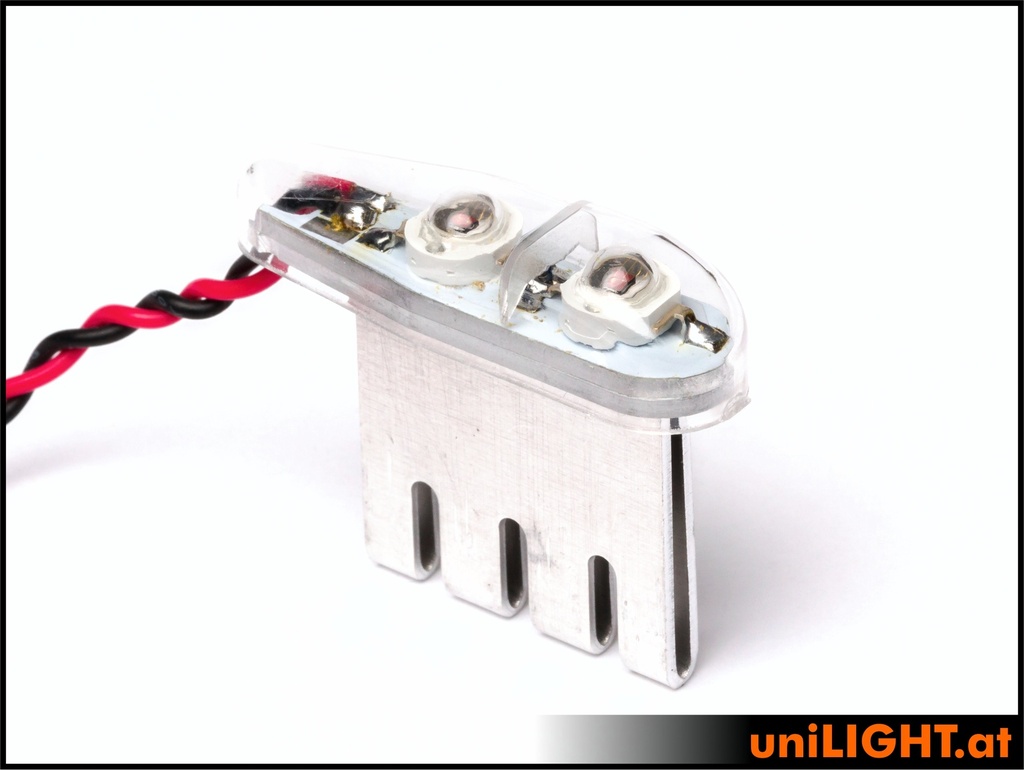

11mm PRO Navigation Light, 4Wx2
PRO11-040x2
Powerful Position-/Navigation Light in x2-Technology - doubled luminous power but the same heat dissipation!
The 11mm series profile light is sleek on the outside, making it visually suitable even for smaller models. With x2 power the light has an enormous brightness and is an eye-catcher even for bigger models. The internally positioned cooling surface enables astonishingly compact dimensions with a unique slim design.
The profile-shaped polycarbonate cover is initially only clipped on and can be separately painted. It is highly transparent and impact-resistant. The assembly of the light is astonishingly easy: simple surface mounting, only a 3x28mm slot is necessary. This way, the luminaire can be also mounted on smaller wing tips or fuselage. If desired, the light can be recessed up to 4mm, thus appearing even smaller, than it is. The cover must be glued after final assembly.
Electricity: 4Wx2 reference power,
Voltage: 8(12)V, 0.35A
Beam angle: >160°
Light intensity: ~2x50 Lumen RED
Light intensity: ~2x70 Lumen GREEN
Light intensity: ~2x100 Lumen WHITE
Dimension assembly pin: 3x28x15mm
Dimension light cap: 11.5x42.5x10mm, up to 4mm lowerable without loss of beam angle
Total mass: 11.5x42.5x35mm
Weight: 9g (without cable)
Equipped with 1m silicone cable and ready-made series resistor for 2S operation
| Operating Voltage: 2S/8V or 3S/12V with additional resistor |
| Cable Length: 1m Silicone 0.25mm² |
| Design: profile-shaped |
| Function: Navigation/Position Light |
| Dimensions: 11mm |
The profile-shaped polycarbonate cap is only attached when delivered. This can be painted separately, is highly transparent and unbreakable. Mounting the lamp is surprisingly easy: for simple surface mounting, only a 3x28mm slot is necessary, which means the lamp can also be mounted on small edge arches or the back of the fuselage. If desired, the light can also be installed recessed by up to 4mm and has an even smaller design. The cap must be glued after final assembly.
Please note that high-performance LEDs can become very warm, up to 70°C is completely normal. These heat sink mounted lights are suitable for continuous operation when air convection is possible. After installation, check the operating temperatures. We cannot guarantee against overheating. Attention: The LED lights are extremely bright! Never look directly into an LED!
